Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WPGT060304 MD220

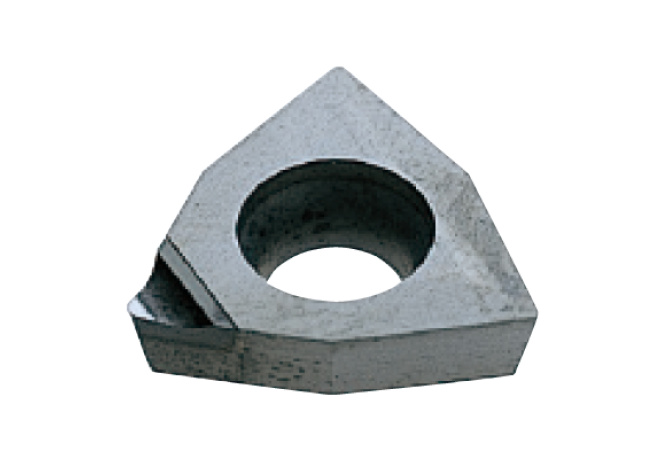

WPGT060304 MD220

Артикул: 413091

В наличии

В корзину

Описание

Характеристики

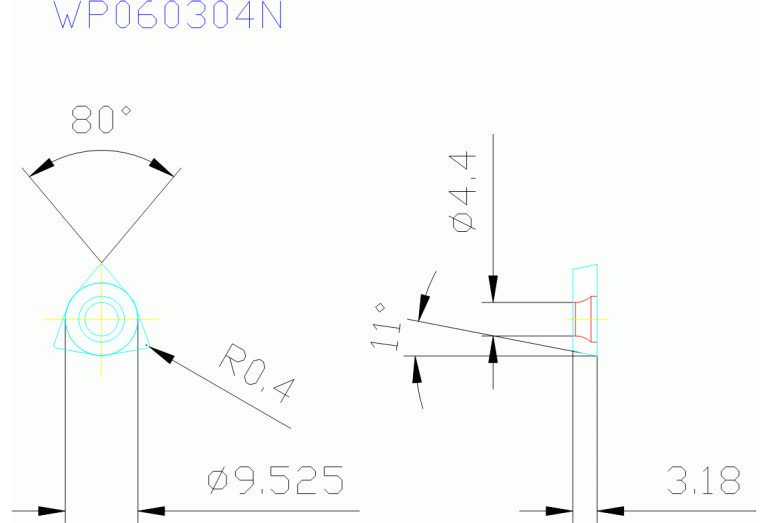

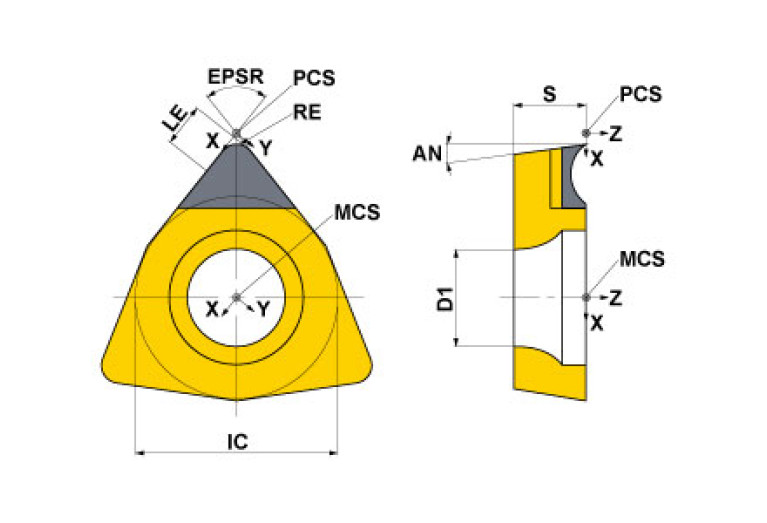

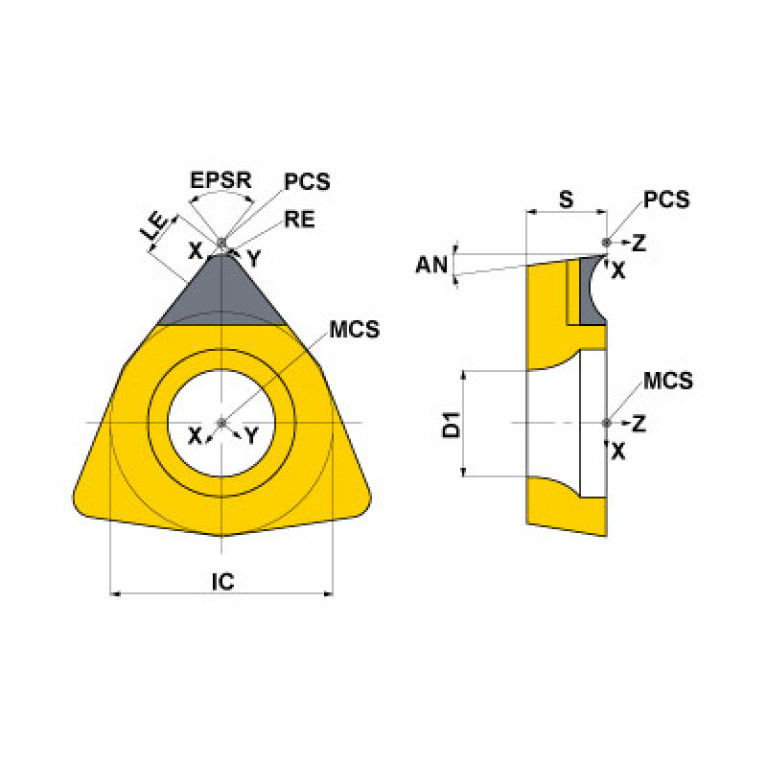

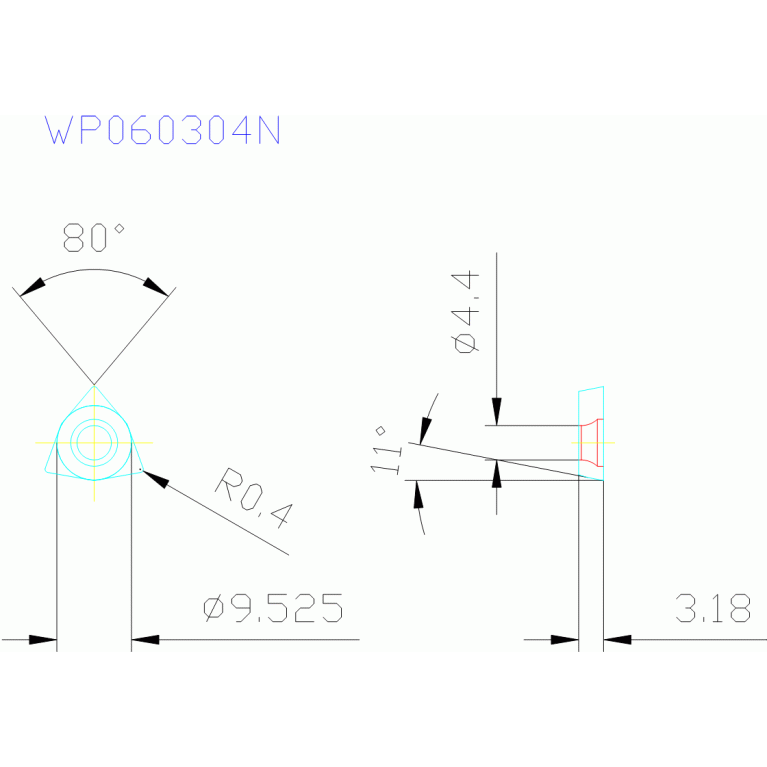

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

9/30/2000

EPSR Insert included angle

80 Degree

FamilyProducts

PCD Turning insert (Positive)

GRDMFG Grade manufacturers designation

MD220

IC Inscribed circle diameter

9.525 mm

ID Technical product number

413091

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$WP0603043NB$$04

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.52 mm

LE Cutting edge effective length

3.3 mm

LOC-03 ISO

ISO$WP0603043NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

Name Identifying order number

WPGT060304 MD220

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

STDDESAnsi Standard designation ANSI

WPGT321

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
