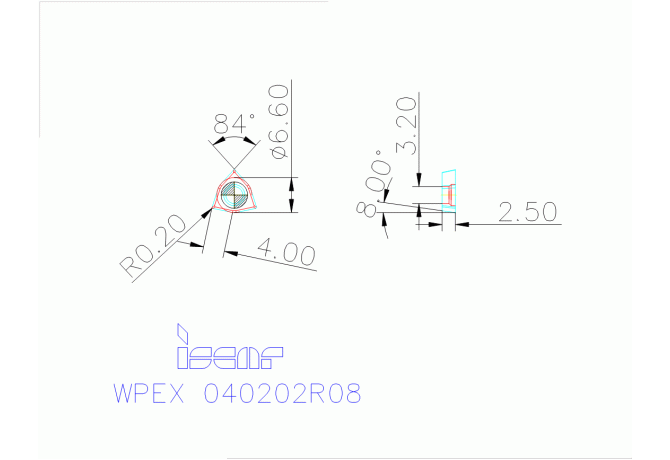

WPEX 040202R08 IC08

Артикул: 5506888

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.2 mm

Delivery state valid from

2/1/2012

DIN

WP0402024N

EPSR Insert included angle

84 Degree

FamilyProducts

WPEX 040202R08 IC08

GRDMFG Grade manufacturers designation

IC08

IC Inscribed circle diameter

6.6 mm

ID Technical product number

5506888

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WP0402024N

Name Identifying order number

WPEX 040202R08 IC08

RE Corner radius

0.2 mm

S Insert thickness

2.5 mm

S1 Insert thickness total

2.5 mm

STDDES Standard designation

WPEX040202

TCINS Tolerance class insert

Working process

No working processes available
