Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WPEB 040200R08 IC08

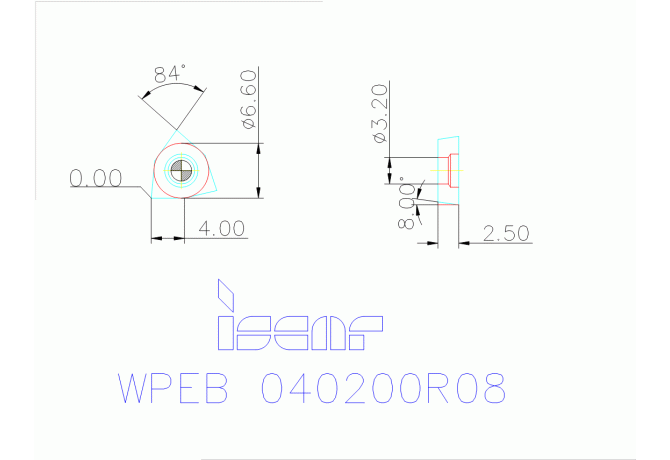

WPEB 040200R08 IC08

Артикул: 5506889

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.2 mm

Delivery state valid from

2/1/2012

DIN

WP0402004N

EPSR Insert included angle

80 Degree

FamilyProducts

WPEB 040200R08 IC08

GRDMFG Grade manufacturers designation

IC08

IC Inscribed circle diameter

6.6 mm

ID Technical product number

5506889

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WP0402004N

Name Identifying order number

WPEB 040200R08 IC08

RE Corner radius

0 mm

S Insert thickness

2.5 mm

S1 Insert thickness total

2.5 mm

STDDES Standard designation

WPEB040200

STDDESAnsi Standard designation ANSI

WPEB21.50

TCINS Tolerance class insert

Working process

No working processes available
