Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WOMG 100716-T3P-IQ IC8250

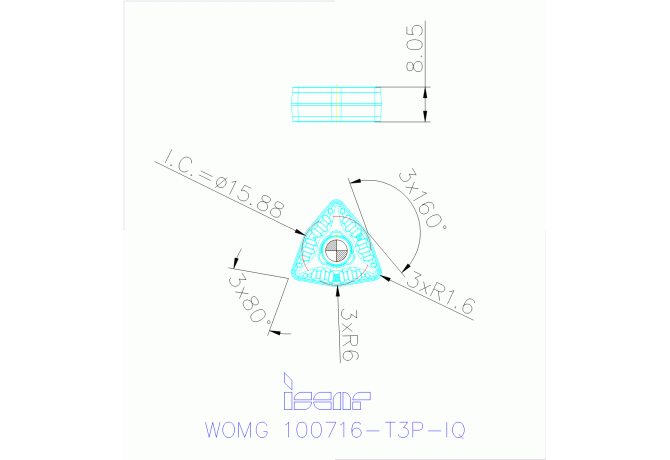

WOMG 100716-T3P-IQ IC8250

Артикул: 5508895

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

-6 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

T3P

COATN Coating / Покрытие

TiN-TiCN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/7/2014

DIN

WO1007162N

EPSR Insert included angle

80 Degree

FamilyProducts

Double-Sided 6° Negative Side Flank Trigon Insert

GRD2ND Standard designation of the grade 2nd application

HC-P01

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDMFG Grade manufacturers designation

IC8250

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

15.88 mm

ID Technical product number

5508895

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

10.86 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WO1007162N

Materials

Name Identifying order number

WOMG 100716-T3P-IQ IC8250

NOI Insert index count

RE Corner radius

1.6 mm

S Insert thickness

7.94 mm

S1 Insert thickness total

7.94 mm

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
