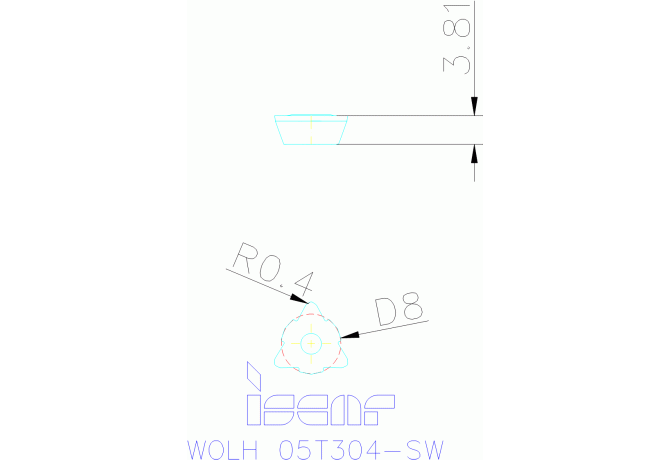

WOLH 05T304-SW IC350

Артикул: 5502945

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

WO05T3044N

EPSR Insert included angle

80 Degree

FamilyProducts

WOLH 05T304-SW IC350

GRDMFG Grade manufacturers designation

IC350

IC Inscribed circle diameter

8 mm

ID Technical product number

5502945

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WO05T3044N

Name Identifying order number

WOLH 05T304-SW IC350

RE Corner radius

0.4 mm

S Insert thickness

3.81 mm

S1 Insert thickness total

3.81 mm

TCINS Tolerance class insert

Working process

No working processes available
