Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WOEJ080412SRMMTN6540

WOEJ080412SRMMTN6540

Артикул: 4113915

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/5/2012

DIN

WO0804126R

EPSR Insert included angle

80 Degree

FamilyProducts

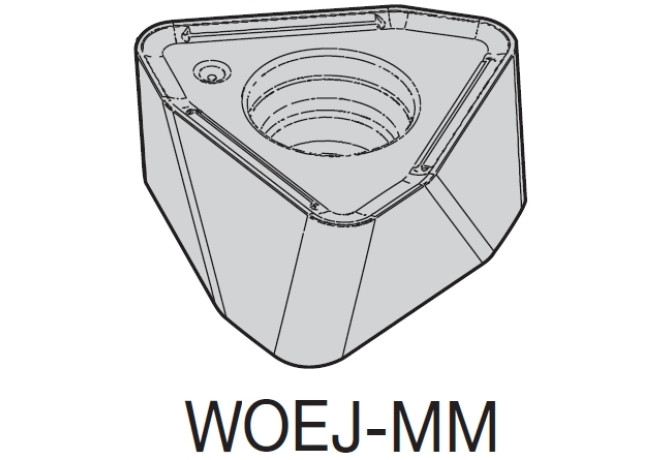

indexable insert for milling, WOEJ-MM

GRDMFG Grade manufacturers designation

TN6540

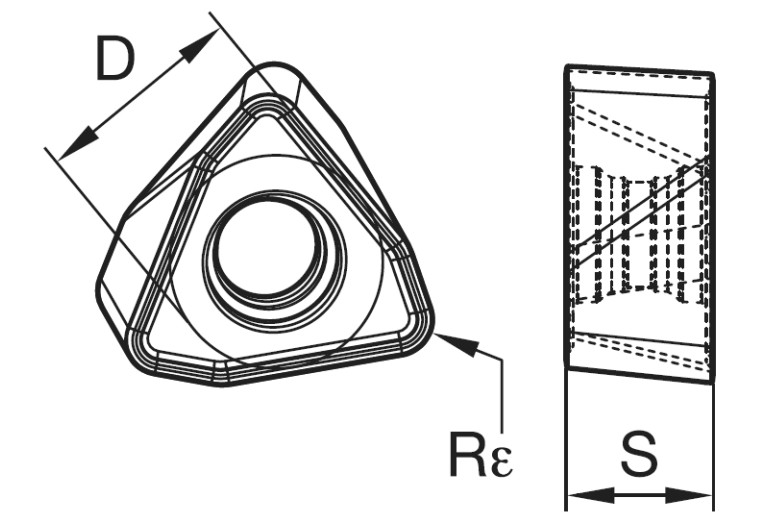

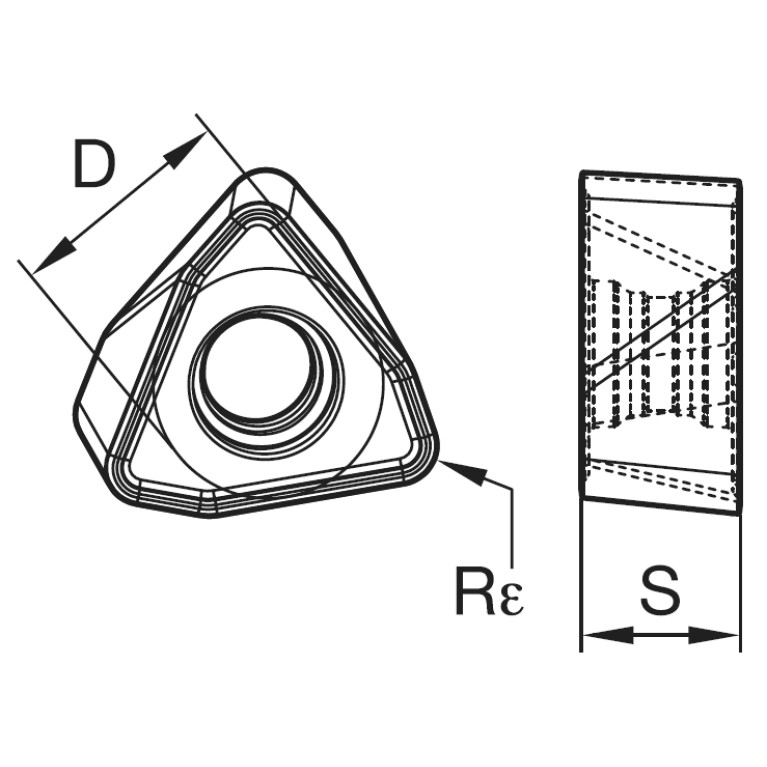

IC Inscribed circle diameter

7.79 mm

ID Technical product number

4113915

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WO0804126R

Materials

P,M,K

Name Identifying order number

WOEJ080412SRMMTN6540

RE Corner radius

1.22 mm

S Insert thickness

4.7 mm

S1 Insert thickness total

4.7 mm

STDDES Standard designation

WOEJ080412SRMM

STDDESAnsi Standard designation ANSI

WOEJ080412SRMM

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
