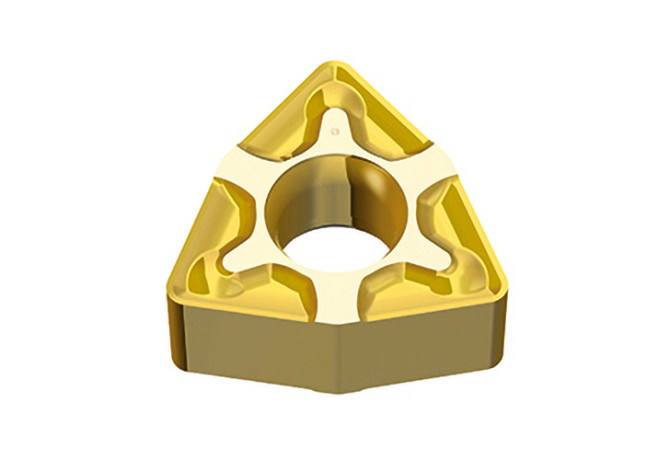

WNMX 060412 MT TT7015

Артикул: 6129111

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

WN0604127N

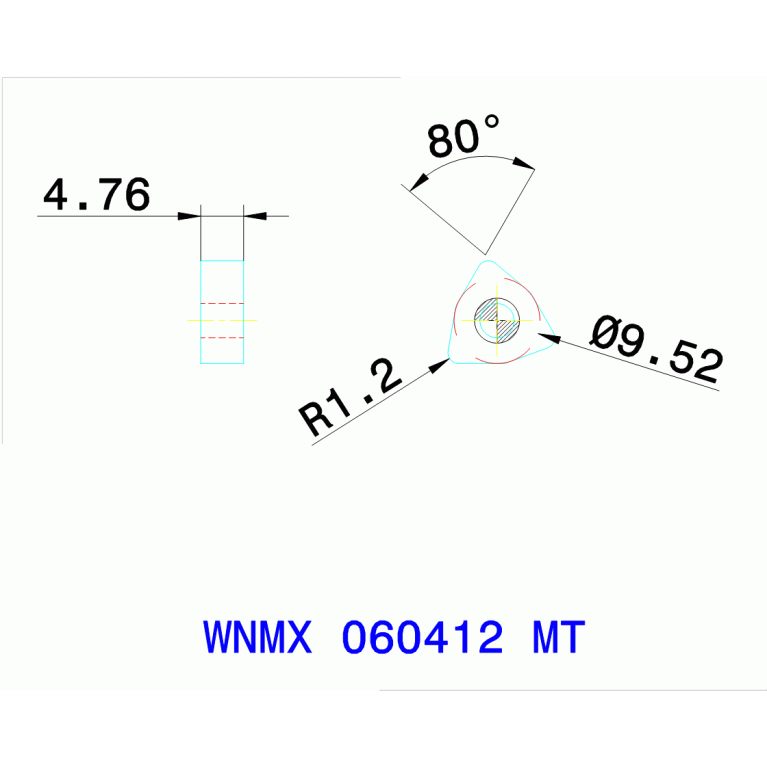

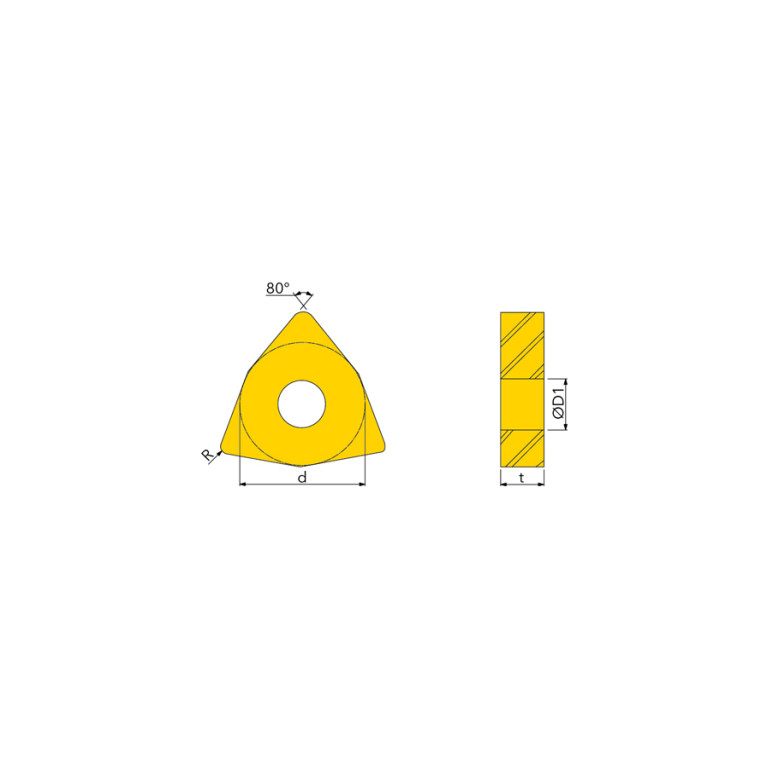

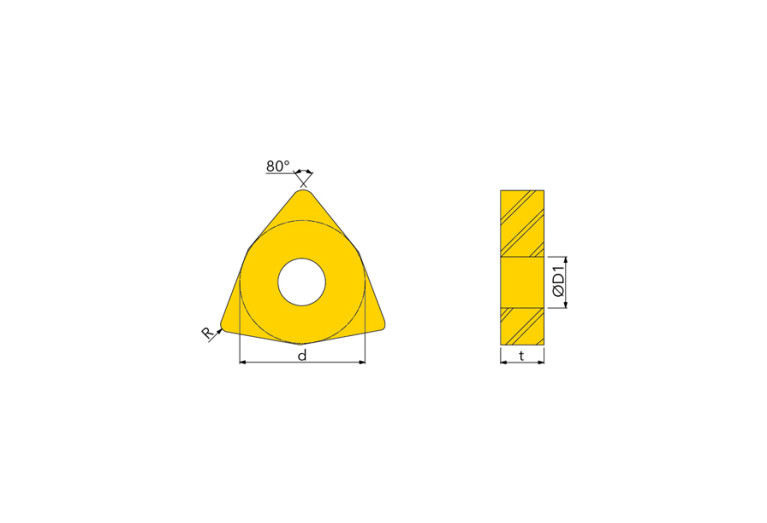

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Negative 80° Trigon inserts for medium roughing / tough rake angle

GRD2ND Standard designation of the grade 2nd application

K10-K25

GRDMFG Grade manufacturers designation

TT7015

IC Inscribed circle diameter

9.52 mm

ID Technical product number

6129111

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0604127N

Name Identifying order number

WNMX 060412 MT TT7015

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMX060412

STDDESAnsi Standard designation ANSI

WNMX333

TCINS Tolerance class insert

Working process

No working processes available
