Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WNMM080408 NMP AC05A

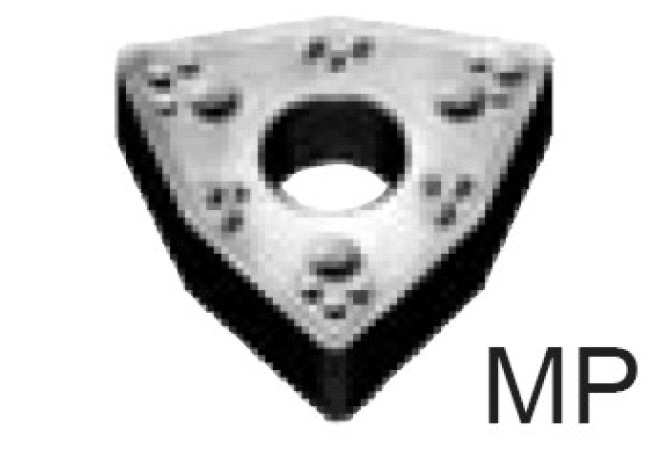

WNMM080408 NMP AC05A

Артикул: WNMM080408 NMP AC05A

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

NMP

COATN Coating / Покрытие

TiCN

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

7/1/2021

DIN

WN0804082N

EPSR Insert included angle

80 Degree

FamilyProducts

Sumitomo indexable insert for turning

GRD2ND Standard designation of the grade 2nd application

HC-P10

GRD3RD Standard designation of the grade 3rd application

HC-K10

GRDMFG Grade manufacturers designation

AC05A

GRDPRIO Standard designation of the grade main application

HC-P01

IC Inscribed circle diameter

12.7 mm

ID Technical product number

WNMM080408 NMP AC05A

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.69 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804082N

M M-dimension

0.08 mm

Materials

P,K

Name Identifying order number

WNMM080408 NMP AC05A

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMM080408

STDDESAnsi Standard designation ANSI

WNMM432

TCINS Tolerance class insert

Working process

No working processes available
