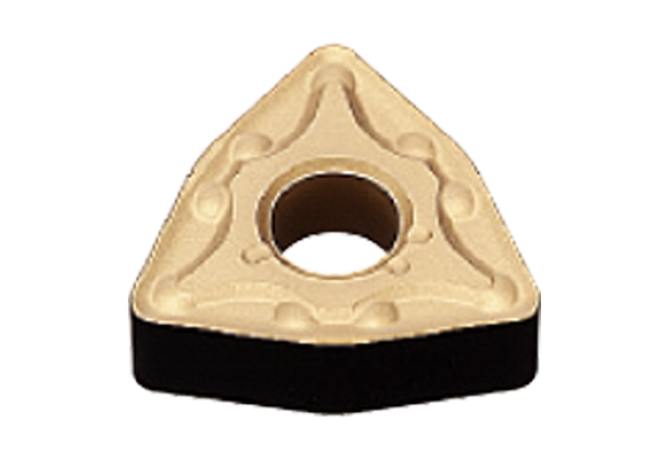

WNMG080416-MA UE6020

Артикул: WNMG080416-MA UE6020

В наличии

В корзину

Описание

Характеристики

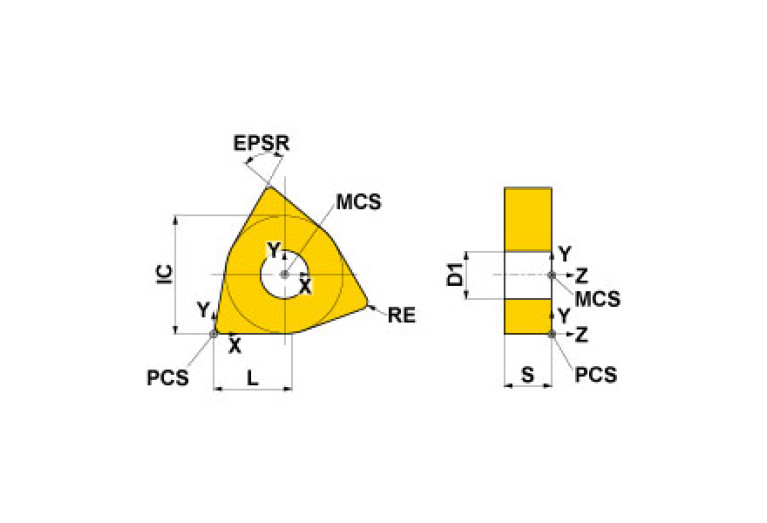

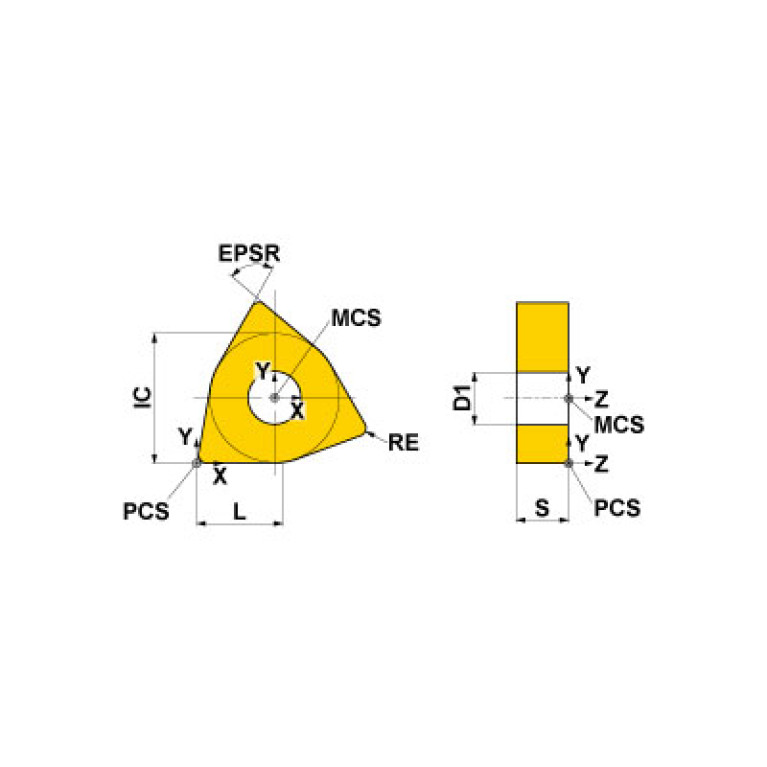

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

4/1/2022

DIN

MI-WN0804 2N

EPSR Insert included angle

80 Degree

FamilyProducts

turning inserts

GRDMFG Grade manufacturers designation

UE6020

IC Inscribed circle diameter

12.7 mm

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.687 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MI-WN0804 2N

Materials

Name Identifying order number

WNMG080416-MA UE6020

NameAnsi Identifying order number inch alternative

WNMG434MA

RE Corner radius

1.6 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
