Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WNMG080416-HR NC3010

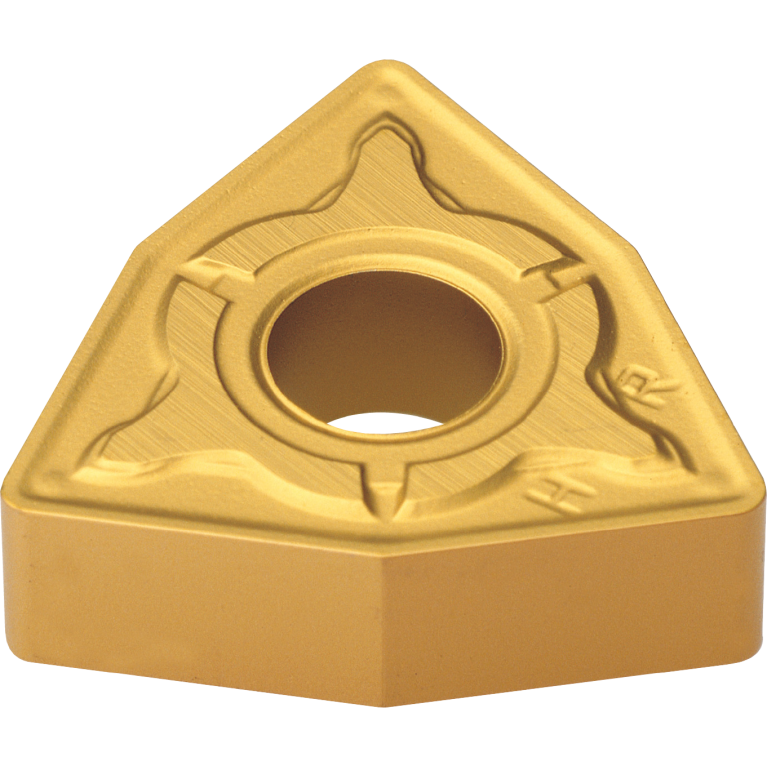

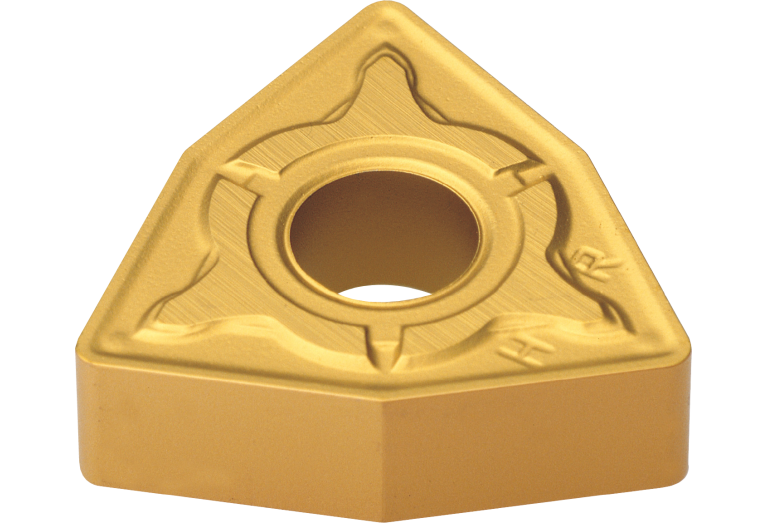

WNMG080416-HR NC3010

Артикул: 1-02-028097

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

6/4/2014

DIN

WN0804 2N

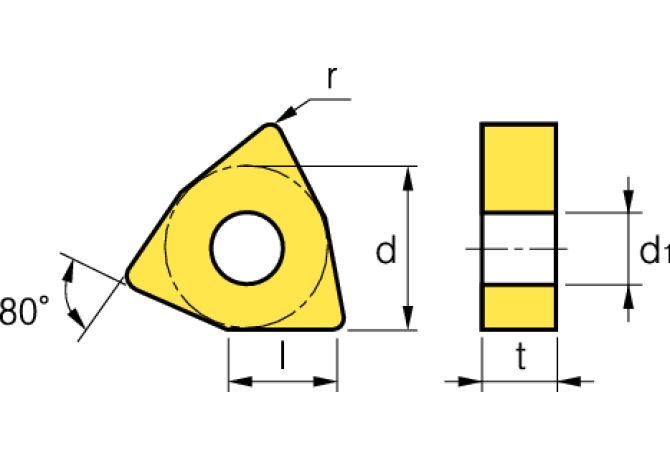

EPSR Insert included angle

80 Degree

FamilyProducts

Turning Insert (Negative)

GRDMFG Grade manufacturers designation

NC3010

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-02-028097

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804 2N

Name Identifying order number

WNMG080416-HR NC3010

RE Corner radius

1.6 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG080416

STDDESAnsi Standard designation ANSI

WNMG434

TCINS Tolerance class insert

Working process

No working processes available
