WNMG080412FW WK05CT

Артикул: 4171696

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

6/5/2012

DIN

WN0804122N

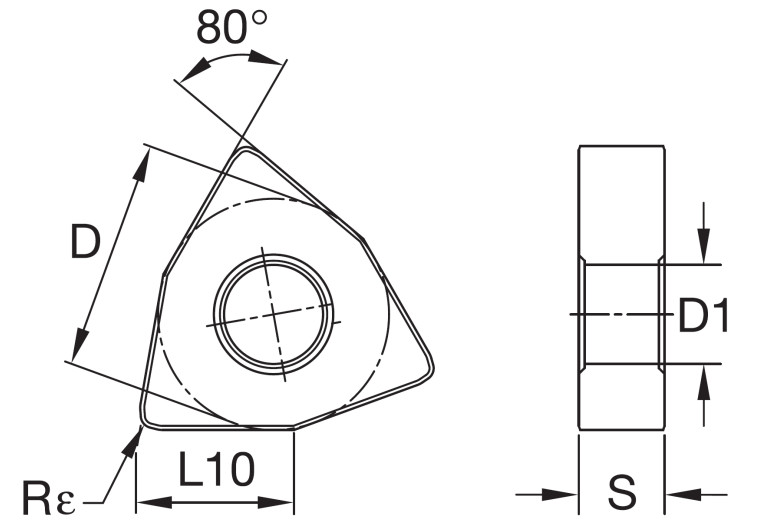

EPSR Insert included angle

80 Degree

FamilyProducts

indexable insert for turning, negative, WNMG-FW

GRDMFG Grade manufacturers designation

WK05CT

IC Inscribed circle diameter

12.7 mm

ID Technical product number

4171696

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.69 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804122N

Materials

Name Identifying order number

WNMG080412FW WK05CT

NameAnsi Identifying order number inch alternative

WNMG433FW WK05CT

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG080412

STDDESAnsi Standard designation ANSI

WNMG433

TCINS Tolerance class insert

Working process

No working processes available
