Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WNMG080412-ZM T9025

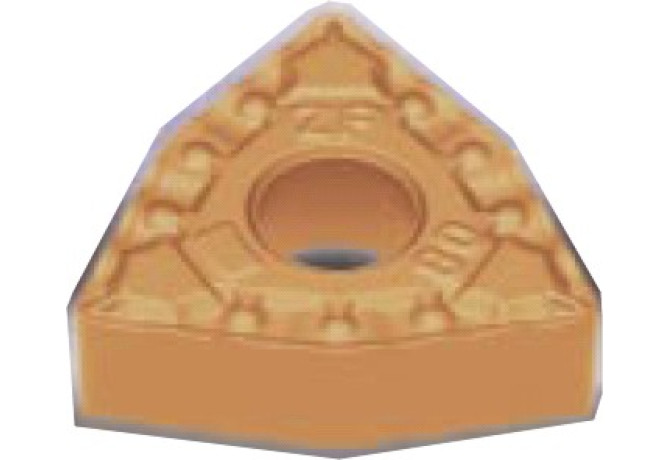

WNMG080412-ZM T9025

Артикул: WNMG080412-ZM T9025

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

MT-CVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

8/24/2006

DIN

WN0804 2N

EPSR Insert included angle

80 Degree

FamilyProducts

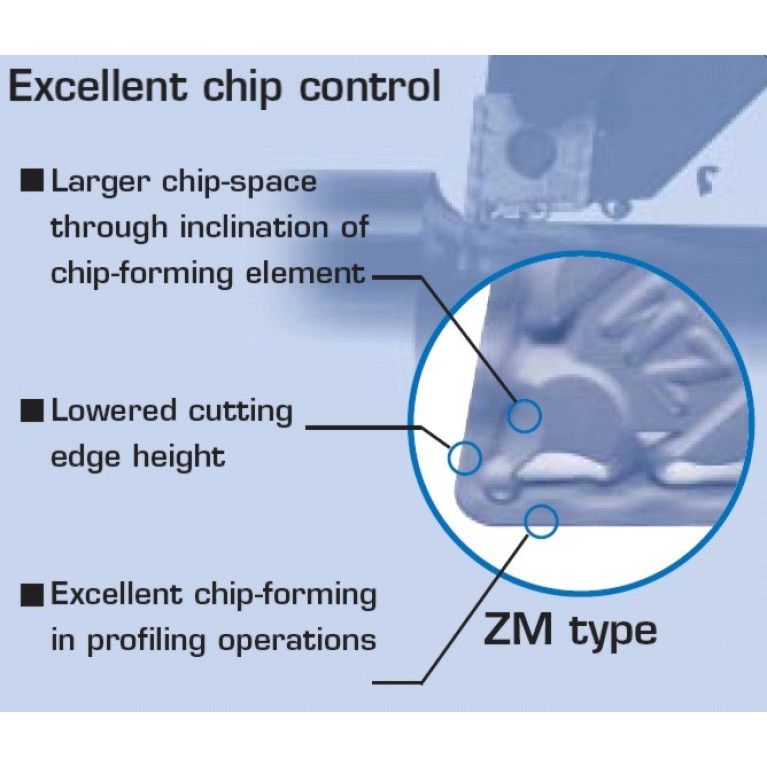

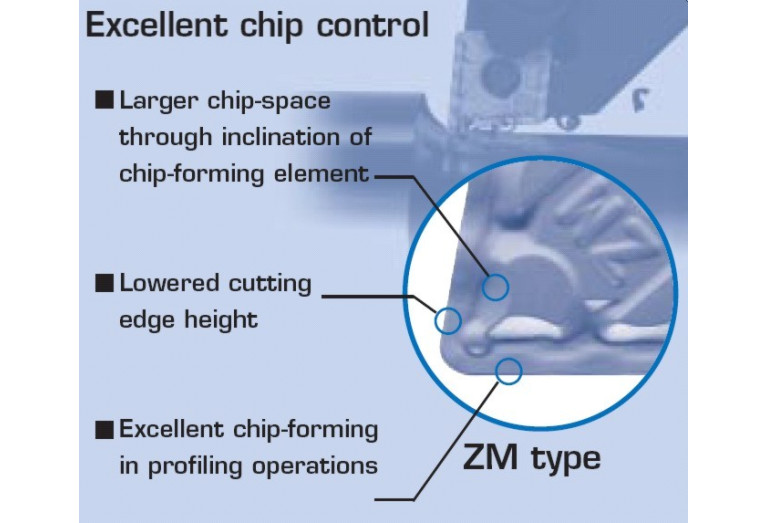

insert ZM type (finishing to medium cutting)

GAN Insert rake angle

7 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRDMFG Grade manufacturers designation

T9025

GRDPRIO Standard designation of the grade main application

HC-P20

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804 2N

Materials

Name Identifying order number

WNMG080412-ZM T9025

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG080412

STDDESAnsi Standard designation ANSI

WNMG433

TCINS Tolerance class insert

Working process

DDA - External turning
