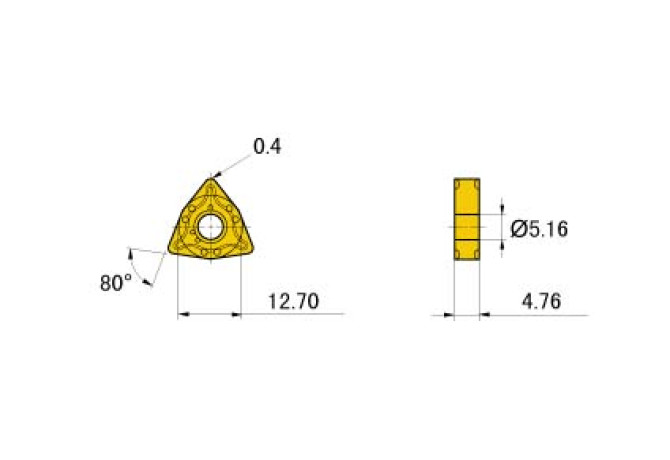

WNMG080404-MA UE6005

Артикул: WNMG080404-MA UE6005

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

BN Face land width

0.2 mm

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

4/1/2022

DIN

WN0804042N

EPSR Insert included angle

80 Degree

FamilyProducts

INSERT, TURNING, COATED

GAN Insert rake angle

22 Degree

GB Face land angle

6 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P10

GRD3RD Standard designation of the grade 3rd application

HC-K01

GRDMFG Grade manufacturers designation

UE6005

GRDPRIO Standard designation of the grade main application

HC-P01

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.68 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804042N

Materials

P,K

Name Identifying order number

WNMG080404-MA UE6005

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG080404

STDDESAnsi Standard designation ANSI

WNMG431

TCINS Tolerance class insert

Working process

BAB - Open by boring,DDA - External turning,DDI - Internal turning
