WNMG06T308-MA UC6010

Артикул: WNMG06T308-MA UC6010

В наличии

В корзину

Описание

Характеристики

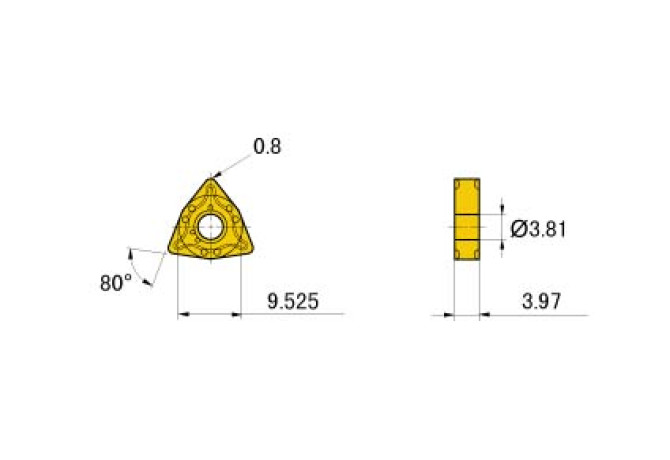

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

BN Face land width

0.2 mm

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

4/1/2022

DIN

WN06T3082N

EPSR Insert included angle

80 Degree

FamilyProducts

INSERT, TURNING, COATED

GAN Insert rake angle

22 Degree

GB Face land angle

6 Degree

GRD2ND Standard designation of the grade 2nd application

HC-K10

GRD3RD Standard designation of the grade 3rd application

HC-K20

GRDMFG Grade manufacturers designation

UC6010

GRDPRIO Standard designation of the grade main application

HC-P10-P20

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.51 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN06T3082N

Materials

P,K

Name Identifying order number

WNMG06T308-MA UC6010

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

WNMG06T308

STDDESAnsi Standard designation ANSI

WNMG32.52

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
