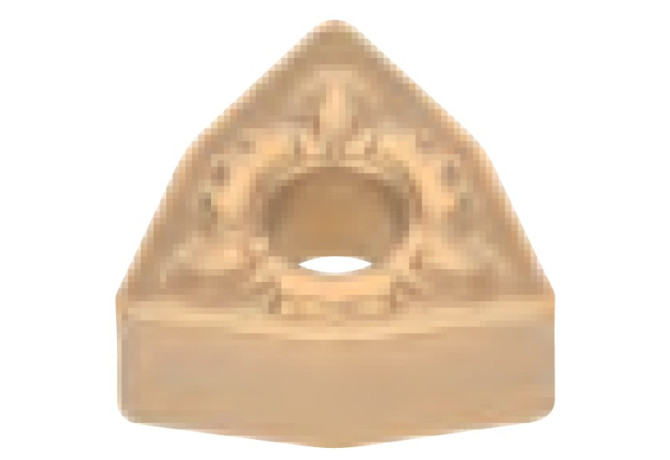

WNMG060404E-SM T6130

Артикул: WNMG060404E-SM T6130

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

9/27/2013

DIN

WN0604 2N

EPSR Insert included angle

80 Degree

FamilyProducts

ecoturn Wendeschneidplatte negativ, WNMG-SM

GAN Insert rake angle

10 Degree

GRDMFG Grade manufacturers designation

T6130

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0604 2N

Materials

Name Identifying order number

WNMG060404E-SM T6130

NameAnsi Identifying order number inch alternative

WNMG 331E SM T6130

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG060404

STDDESAnsi Standard designation ANSI

WNMG331

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
