WNMG060404-SH NX2525

Артикул: WNMG060404-SH NX2525

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

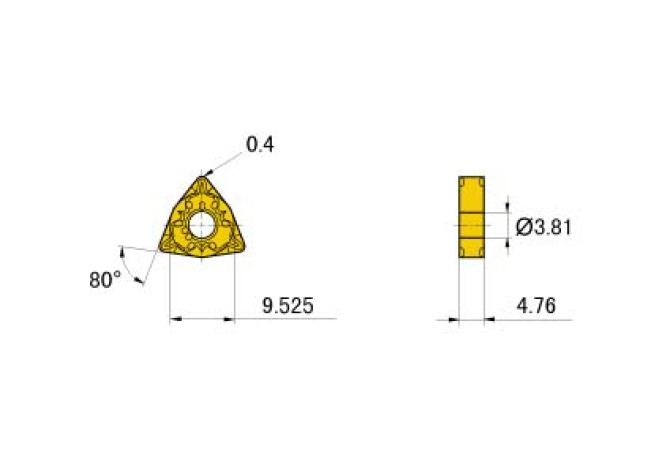

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

4/1/2022

DIN

WN0604042N

EPSR Insert included angle

80 Degree

FamilyProducts

INSERT, TURNING, CERMET

GAN Insert rake angle

15 Degree

GRD2ND Standard designation of the grade 2nd application

CT-K10

GRD3RD Standard designation of the grade 3rd application

CT-K20

GRDMFG Grade manufacturers designation

NX2525

GRDPRIO Standard designation of the grade main application

CT-P20

IC Inscribed circle diameter

9.525 mm

ID Technical product number

WNMG060404-SH NX2525

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.51 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0604042N

Materials

P,K

Name Identifying order number

WNMG060404-SH NX2525

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG060404

STDDESAnsi Standard designation ANSI

WNMG331

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning

WT Weight of item

0.017 kg
