WNMG060404-MS UC6010

Артикул: WNMG060404-MS UC6010

В наличии

В корзину

Описание

Характеристики

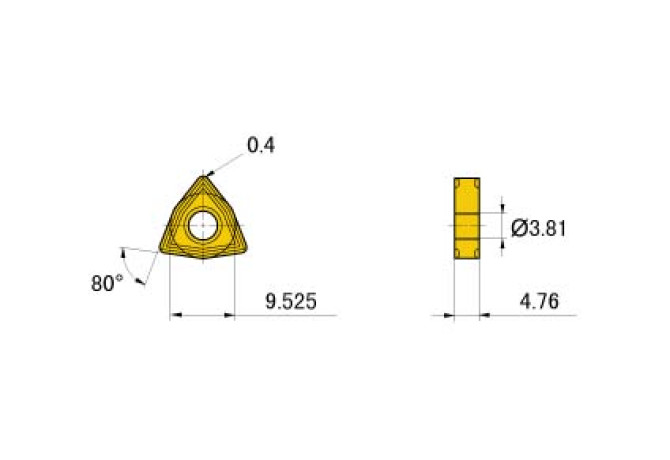

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

BN Face land width

0.5 mm

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

4/1/2022

DIN

WN0604042N

EPSR Insert included angle

80 Degree

FamilyProducts

INSERT, TURNING, COATED

GAN Insert rake angle

25 Degree

GB Face land angle

15 Degree

GRD2ND Standard designation of the grade 2nd application

HC-K10

GRD3RD Standard designation of the grade 3rd application

HC-K20

GRDMFG Grade manufacturers designation

UC6010

GRDPRIO Standard designation of the grade main application

HC-P10-P20

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.51 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0604042N

Materials

P,K

Name Identifying order number

WNMG060404-MS UC6010

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG060404

STDDESAnsi Standard designation ANSI

WNMG331

TCINS Tolerance class insert

Working process

BAB - Open by boring,DDA - External turning,DDI - Internal turning
