Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WNMG 080408-GN IC9350

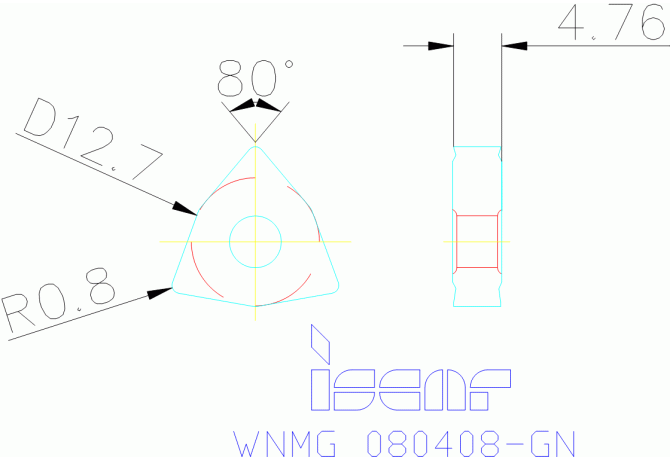

WNMG 080408-GN IC9350

Артикул: 5507355

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiN-TiCN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

WN0804082N

EPSR Insert included angle

80 Degree

FamilyProducts

WNMG 080408-GN IC9350

GAN Insert rake angle

7 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P20

GRD3RD Standard designation of the grade 3rd application

HC-M30

GRDMFG Grade manufacturers designation

IC9350

GRDPRIO Standard designation of the grade main application

HC-P45

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5507355

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804082N

Name Identifying order number

WNMG 080408-GN IC9350

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMG080408

STDDESAnsi Standard designation ANSI

WNMG432

TCINS Tolerance class insert

Working process

No working processes available
