Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WNMG 06T304-NF IC9250

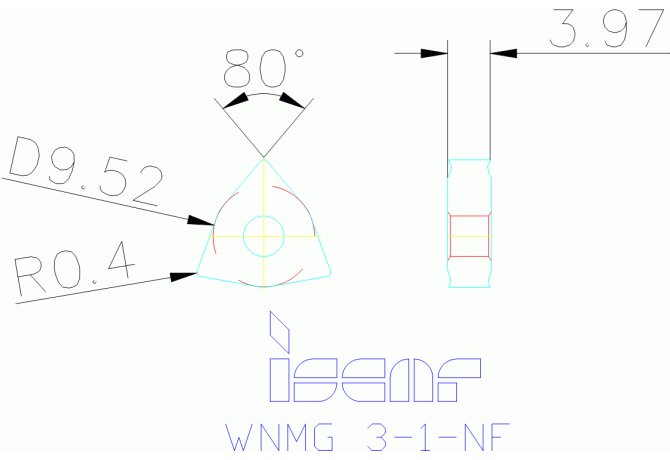

WNMG 06T304-NF IC9250

Артикул: 5591906

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiN-TiCN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

WN06T3042N

EPSR Insert included angle

80 Degree

FamilyProducts

WNMG 06T304-NF IC9250

GAN Insert rake angle

4 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P01

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDMFG Grade manufacturers designation

IC9250

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5591906

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.52 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN06T3042N

Name Identifying order number

WNMG 06T304-NF IC9250

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.9 mm

STDDES Standard designation

WNMG06T304

STDDESAnsi Standard designation ANSI

WNMG32.51

TCINS Tolerance class insert

Working process

No working processes available
