WNMA080408 NC6205

Артикул: 1-02-044282

В наличии

В корзину

Описание

Характеристики

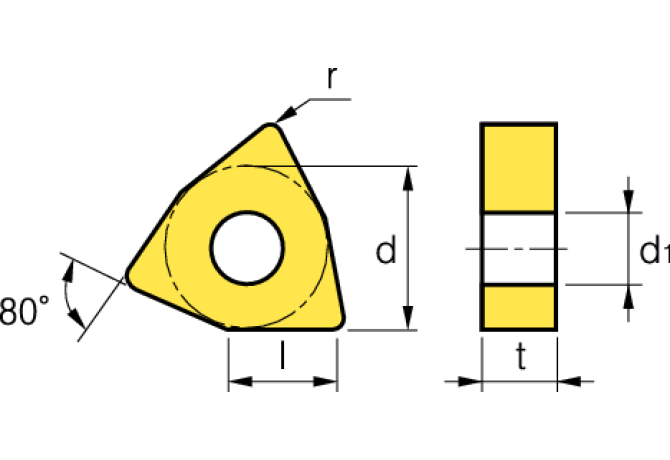

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

6/4/2014

DIN

WN0804 2N

EPSR Insert included angle

80 Degree

FamilyProducts

Turning Insert (Negative)

GRDMFG Grade manufacturers designation

NC6205

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-02-044282

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804 2N

Name Identifying order number

WNMA080408 NC6205

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMA080408

STDDESAnsi Standard designation ANSI

WNMA432

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.0101 kg
