Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WNMA 080408 TT7015

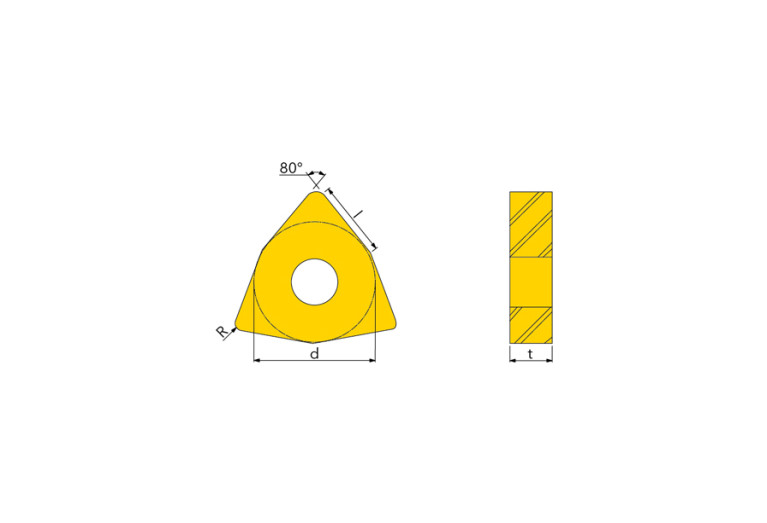

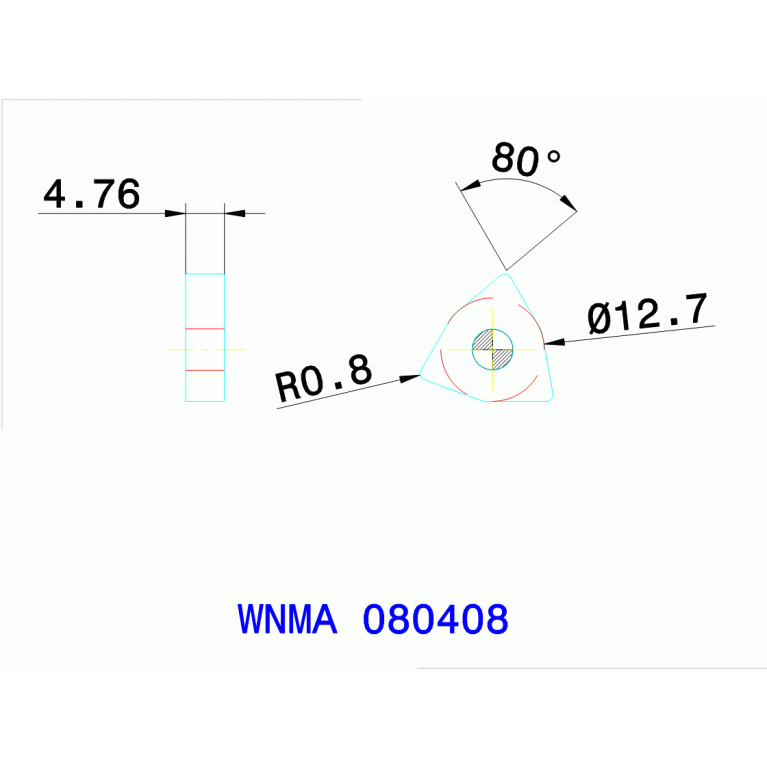

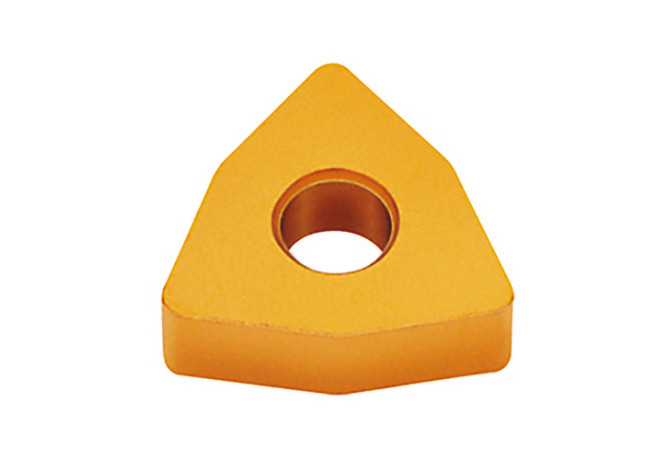

WNMA 080408 TT7015

Артикул: 5523608

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

WN0804 2N

EPSR Insert included angle

80 Degree

FamilyProducts

insert, Negative 80° Trigon inserts for roughing

GRD2ND Standard designation of the grade 2nd application

K10-K25

GRDMFG Grade manufacturers designation

TT7015

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5523608

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.3 mm

LE Cutting edge effective length

3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804 2N

Name Identifying order number

WNMA 080408 TT7015

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

WNMA080408

STDDESAnsi Standard designation ANSI

WNMA432

TCINS Tolerance class insert

Working process

No working processes available
