Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WNMA 06T312 IC5005

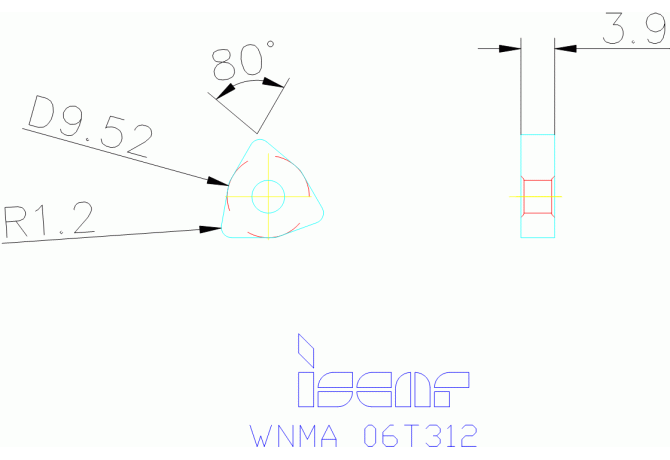

WNMA 06T312 IC5005

Артикул: 5550510

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

CVD

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

WN06T3122N

EPSR Insert included angle

80 Degree

FamilyProducts

WNMA 06T312 IC5005

GRD2ND Standard designation of the grade 2nd application

HC-P15

GRD3RD Standard designation of the grade 3rd application

HC-H25

GRDMFG Grade manufacturers designation

IC5005

GRDPRIO Standard designation of the grade main application

HC-K20

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5550510

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.52 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN06T3122N

Materials

P,K

Name Identifying order number

WNMA 06T312 IC5005

RE Corner radius

1.2 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.9 mm

STDDES Standard designation

WNMA06T312

STDDESAnsi Standard designation ANSI

WNMA32.53

TCINS Tolerance class insert

Working process

No working processes available
