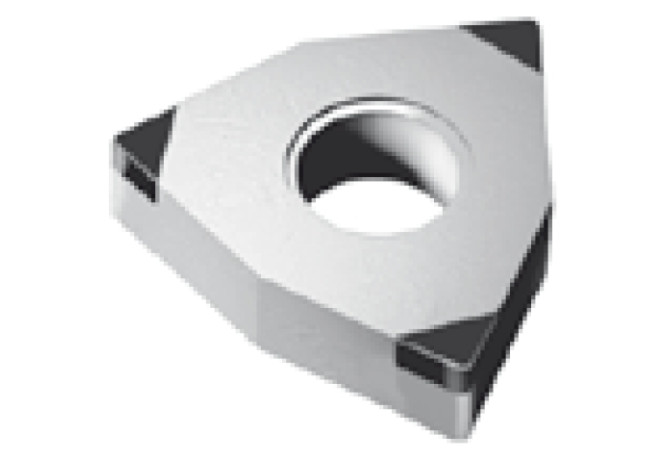

WNGA080408T51N-0AM-FU720

WNGA080408T51N-0AM-FU720 WNGA080408T51N-0AM-FU720 WNGA080408T51N-0AM-FU720

WNGA080408T51N-0AM-FU720

Mapal
Артикул: WNGA080408 T51 N-0AM-FU720
В наличии
В корзину
Описание
Характеристики

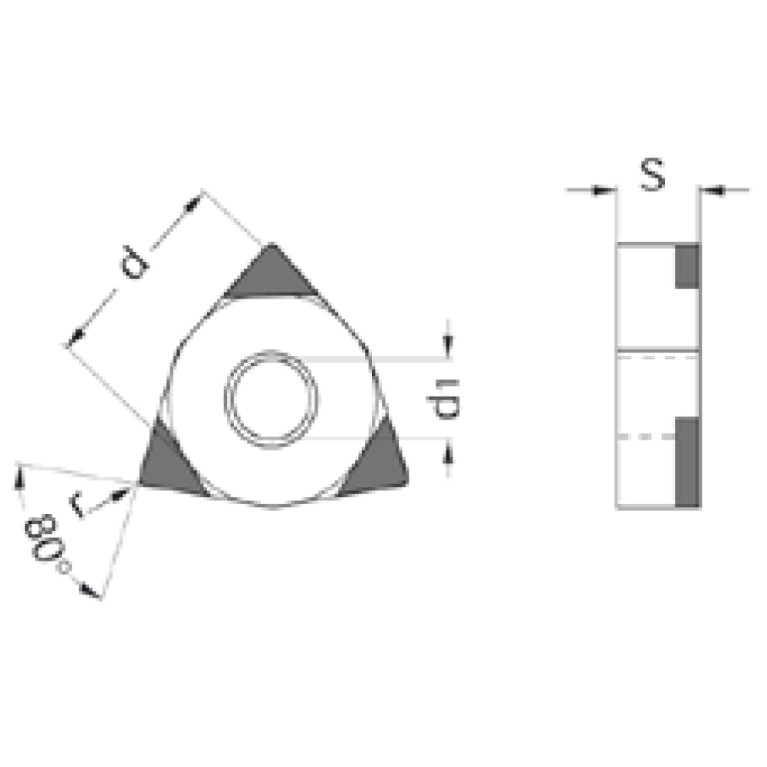

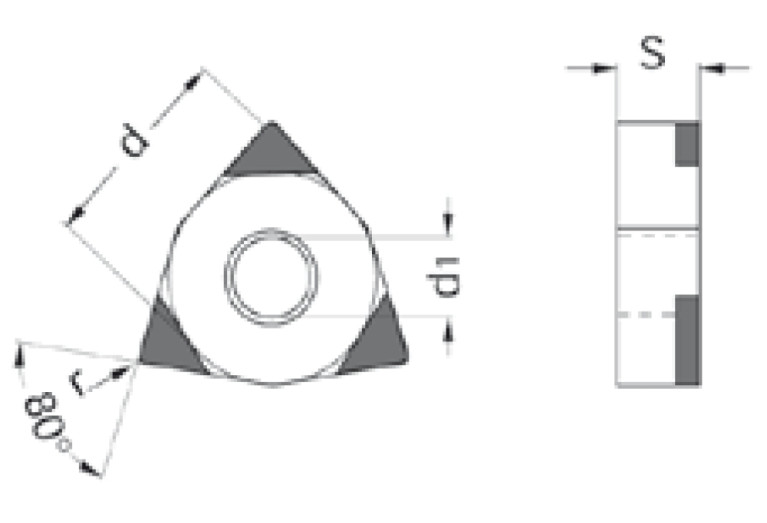

AN Clearance angle major
0 Degree
CB Chip breaker face count
0 - Without chip breaker
CBMD Chip breaker manufacturers designation
0AM
CECC Cutting edge condition code
T - Chamfered
COMPC Company code
MP - Mapal
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
5.13 mm
Delivery state valid from
7/10/2012
DIN
WN0804 2N
EPSR Insert included angle
80 Degree
FamilyProducts
indexable CBN insert WNGA type
GB Face land angle
51 Degree
GRDMFG Grade manufacturers designation
FU720
IC Inscribed circle diameter
12.7 mm
ID Technical product number
WNGA080408 T51 N-0AM-FU720
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-07 - Trigon insert
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
WN0804 2N
Name Identifying order number
WNGA080408T51N-0AM-FU720
RE Corner radius
0.8 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
WNGA080408
STDDESAnsi Standard designation ANSI
WNGA432
TCE Tipped cutting edge code
M
TCINS Tolerance class insert
G
Working process
No working processes available
