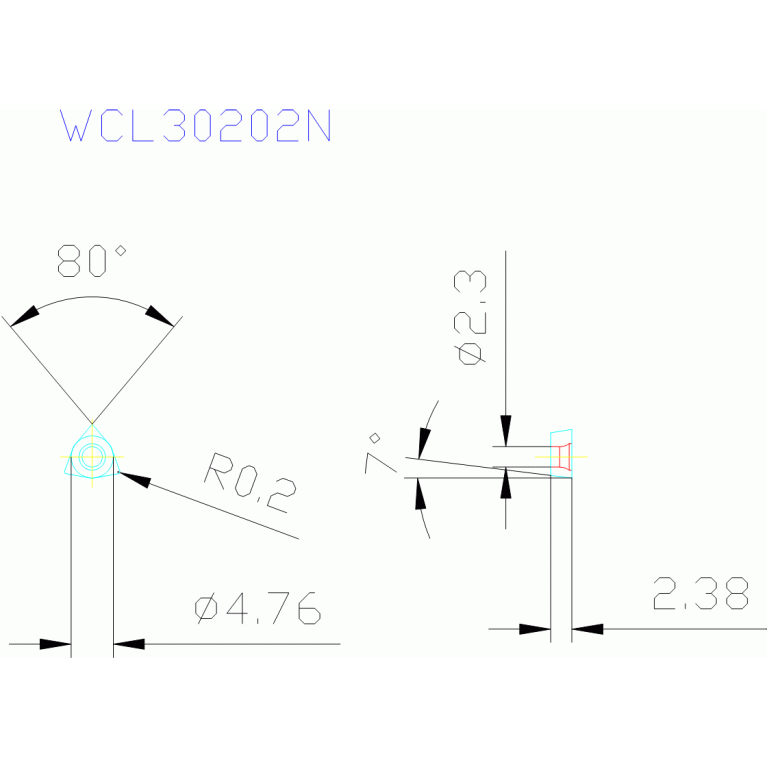

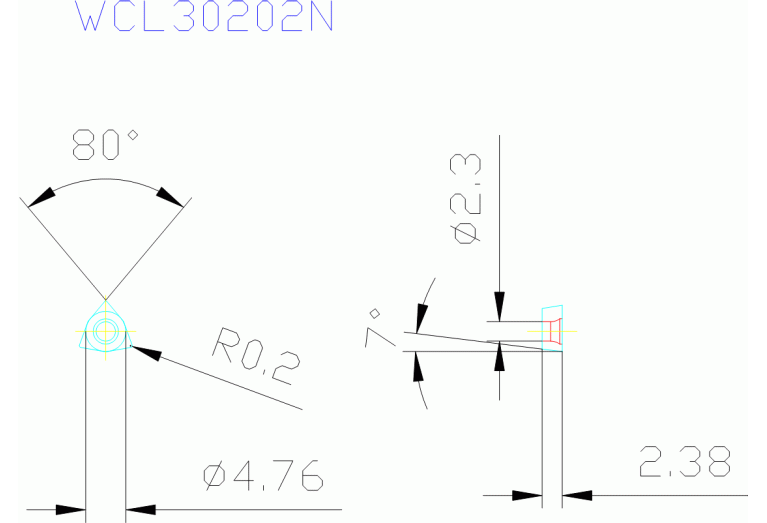

WCMTL30202 UTi20T

Артикул: 109034

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

E - Rounded

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

2.3 mm

Delivery state valid from

9/30/2000

EPSR Insert included angle

80 Degree

FamilyProducts

Turning insert (Positive)

GRDMFG Grade manufacturers designation

UTi20T

IC Inscribed circle diameter

4.76 mm

ID Technical product number

109034

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

3.26 mm

Name Identifying order number

WCMTL30202 UTi20T

NOI Insert index count

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

STDDESAnsi Standard designation ANSI

WCMT1.51.50.5

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
