WCGTL30204L HTi10

Артикул: WCGTL30204L HTi10

В наличии

В корзину

Описание

Характеристики

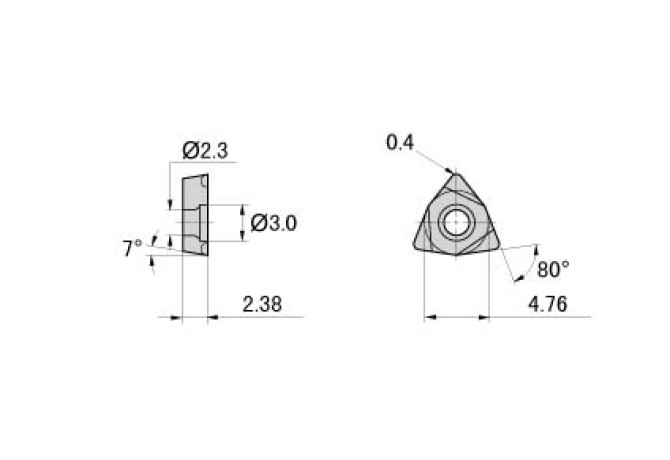

AN Clearance angle major

7 Degree

ANN Clearance angle minor

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.3 mm

Delivery state valid from

4/1/2022

DIN

WCL302043L

EPSR Insert included angle

80 Degree

FamilyProducts

INSERT, TURNING, UNCOATED

GAN Insert rake angle

15 Degree

GRDMFG Grade manufacturers designation

HTi10

GRDPRIO Standard designation of the grade main application

HW-K10

IC Inscribed circle diameter

4.76 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

3.25 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WCL302043L

Materials

K,N,S,H

Name Identifying order number

WCGTL30204L HTi10

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

WCGTL30204L

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
