Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WBMTL30202L-MV AP25N

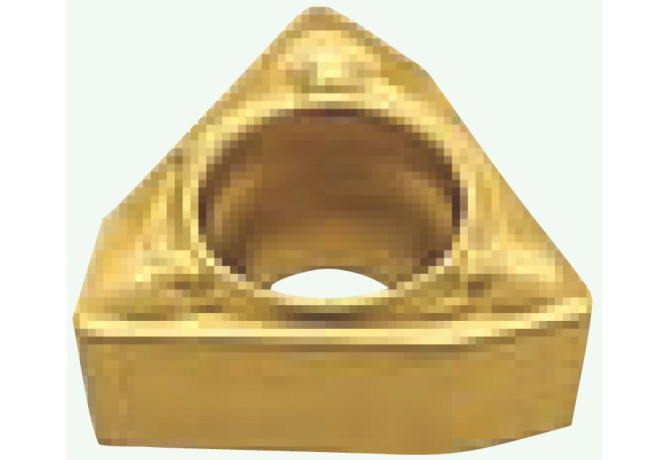

WBMTL30202L-MV AP25N

Артикул: WBMTL30202L-MV AP25N

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

5 Degree

BN Face land width

0.16 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

(Ti, Al)N

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.3 mm

Delivery state valid from

4/1/2022

DIN

WBL302023L

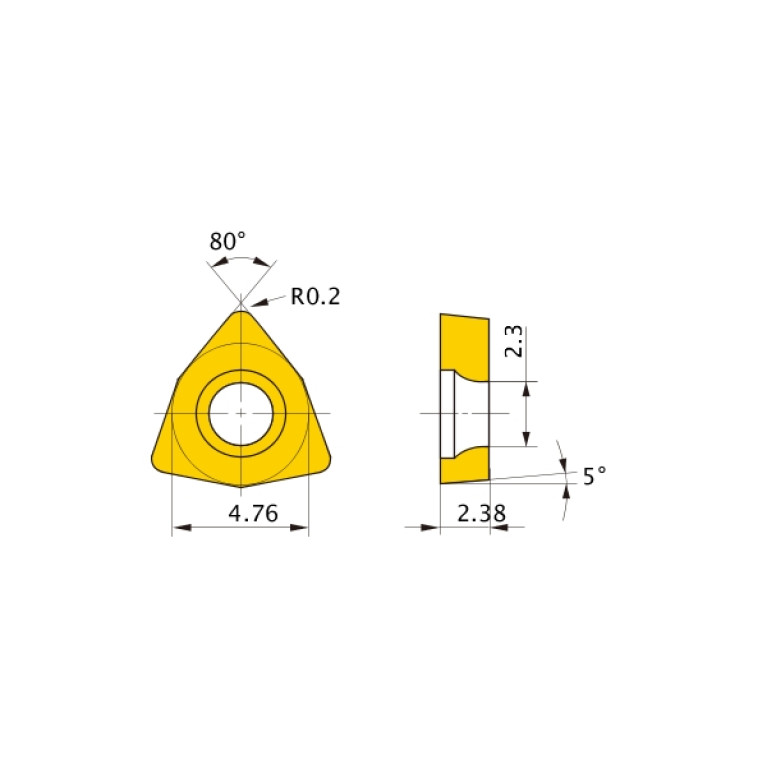

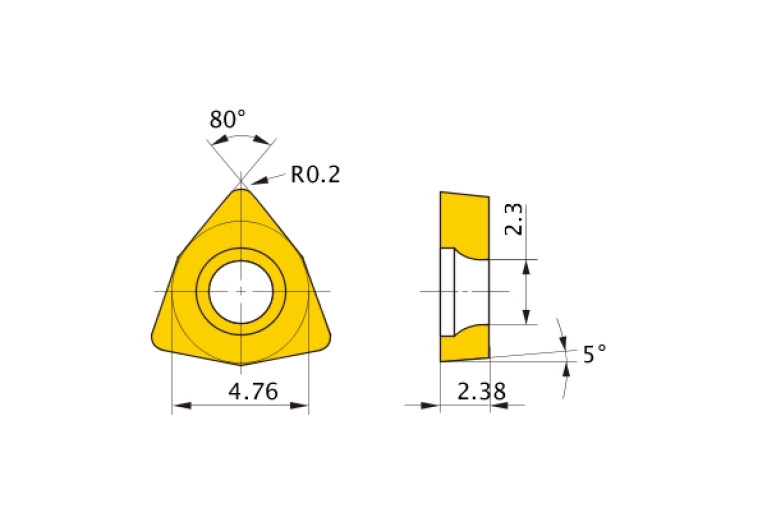

EPSR Insert included angle

80 Degree

FamilyProducts

insert for turning WBMT-L-MV

GAN Insert rake angle

20 Degree

GB Face land angle

8 Degree

GRD2ND Standard designation of the grade 2nd application

CC-K10

GRD3RD Standard designation of the grade 3rd application

CC-K20

GRDMFG Grade manufacturers designation

AP25N

GRDPRIO Standard designation of the grade main application

CC-P01

IC Inscribed circle diameter

4.76 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

3.25 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WBL302023L

Materials

Name Identifying order number

WBMTL30202L-MV AP25N

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

WBMTL30202L

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
