Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WBGTS30202L CN2000

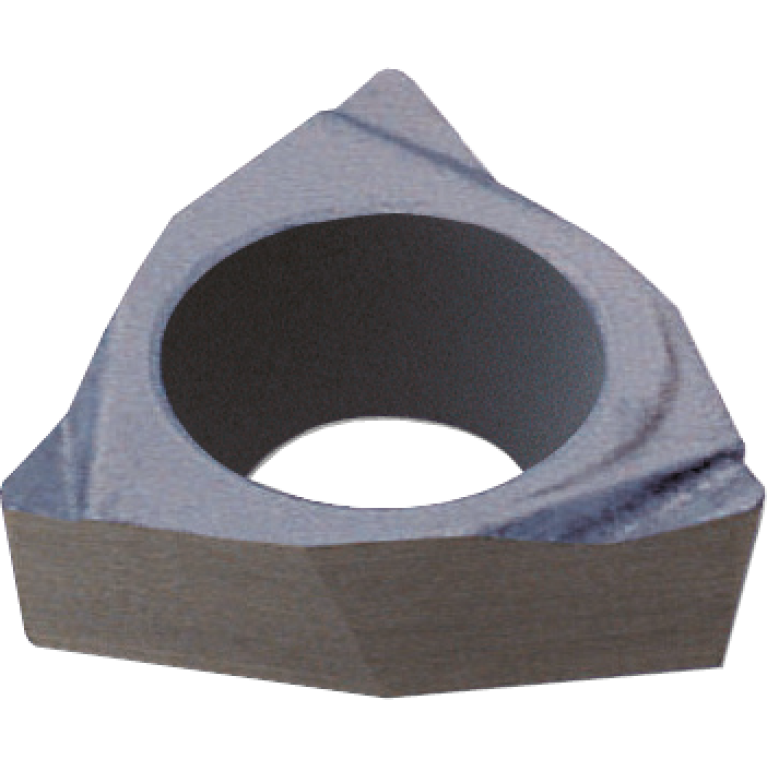

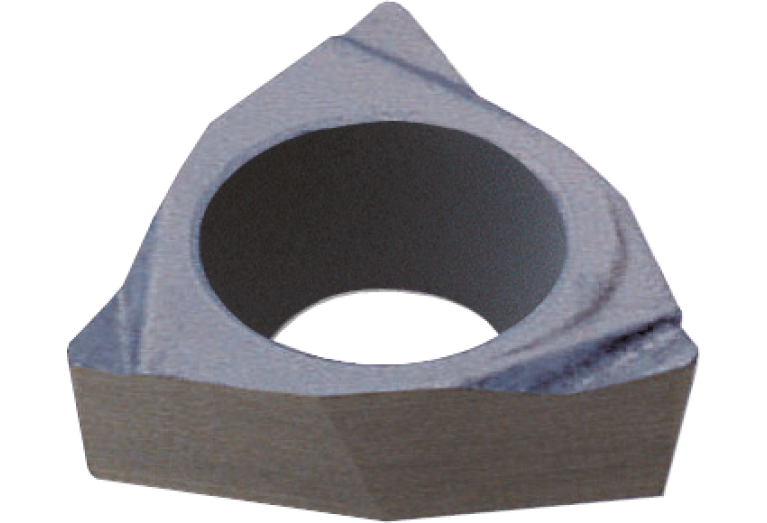

WBGTS30202L CN2000

Артикул: 1-03-017413

В наличии

В корзину

Описание

Характеристики

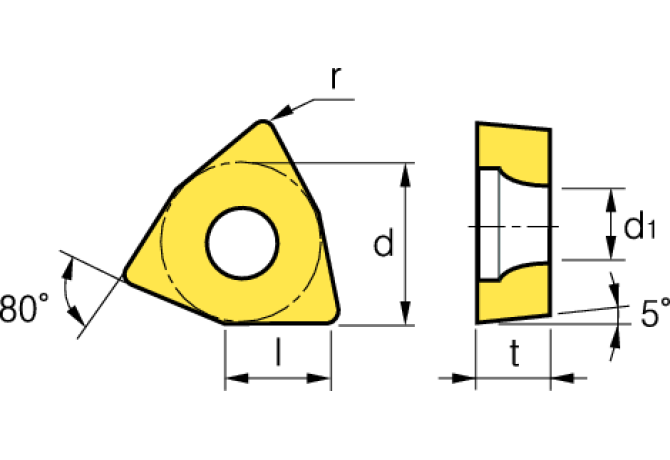

AN Clearance angle major

5 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.4 mm

Delivery state valid from

6/4/2014

DIN

WBS302 3L

EPSR Insert included angle

80 Degree

FamilyProducts

Turning Insert (Positive)

GRDMFG Grade manufacturers designation

CN2000

GRDPRIO Standard designation of the grade main application

Cermet

IC Inscribed circle diameter

4.76 mm

ID Technical product number

1-03-017413

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

3.1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WBS302 3L

Name Identifying order number

WBGTS30202L CN2000

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

WBGTS30202L

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.1 kg
