Главная Каталог продукции Toolunited 16 201-07 - Trigon insert WBGTL30202L-F MP3025

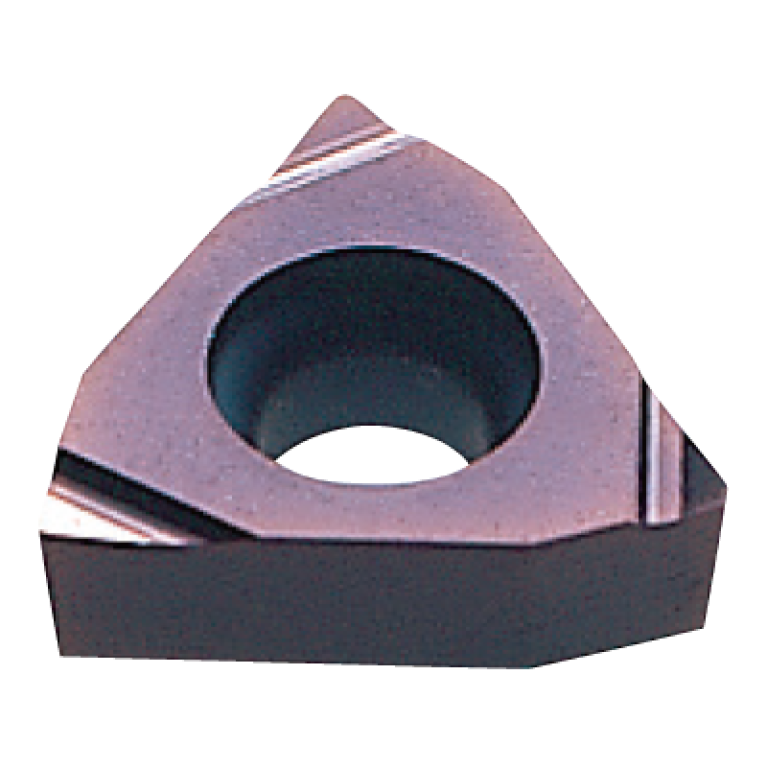

WBGTL30202L-F MP3025

Артикул: 615435

В наличии

В корзину

Описание

Характеристики

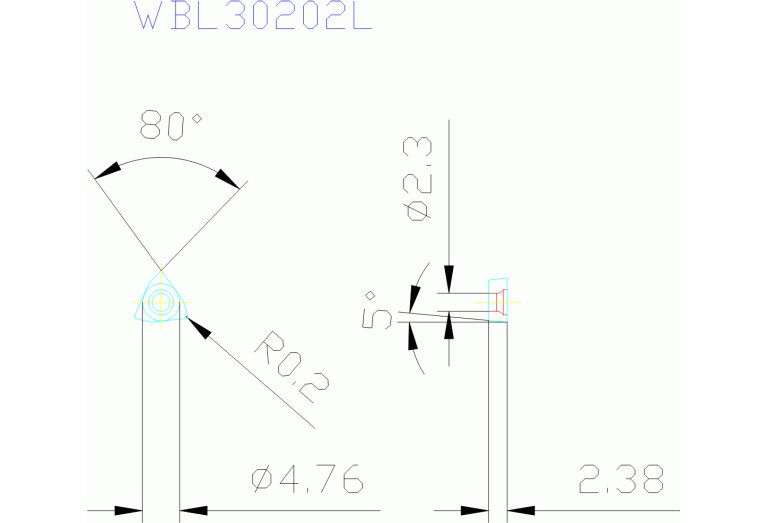

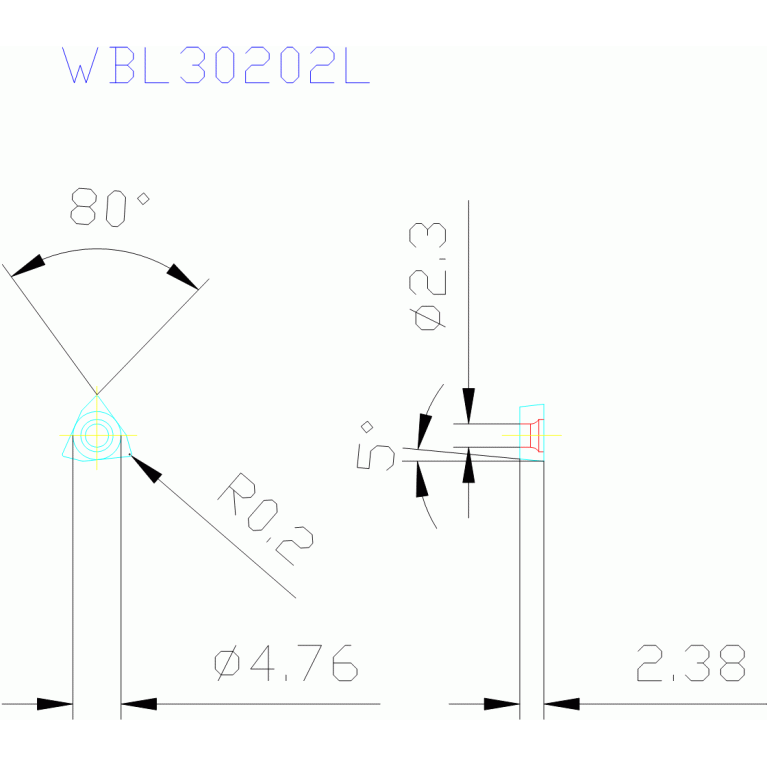

AN Clearance angle major

5 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

F - Sharpedged

COATN Coating

TiN-TiCN-TiN

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

2.3 mm

Delivery state valid from

9/30/2012

EPSR Insert included angle

80 Degree

FamilyProducts

Turning insert (Positive)

GRDMFG Grade manufacturers designation

MP3025

IC Inscribed circle diameter

4.76 mm

ID Technical product number

615435

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

3.26 mm

LE Cutting edge effective length

2.1 mm

Name Identifying order number

WBGTL30202L-F MP3025

NOI Insert index count

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

STDDESAnsi Standard designation ANSI

WBGT1.51.50.5LF

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
