Главная Каталог продукции Toolunited 16 201-07 - Trigon insert NP-WCMWL30204FA MB730

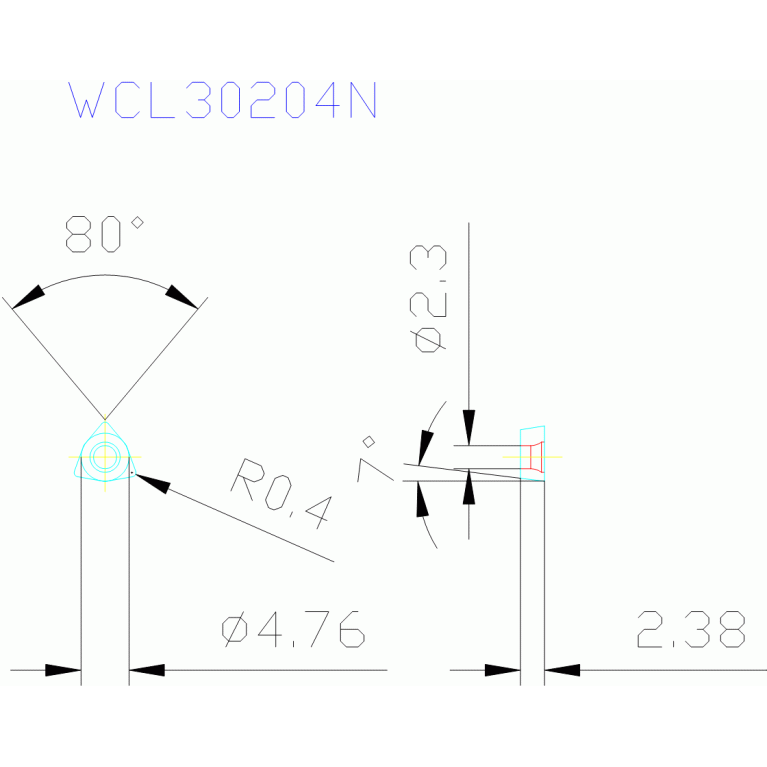

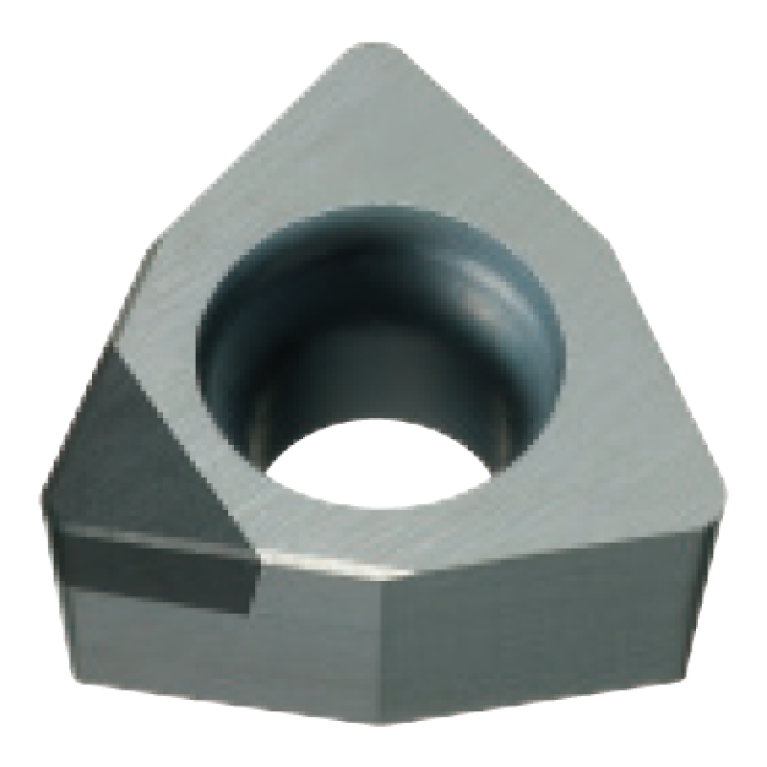

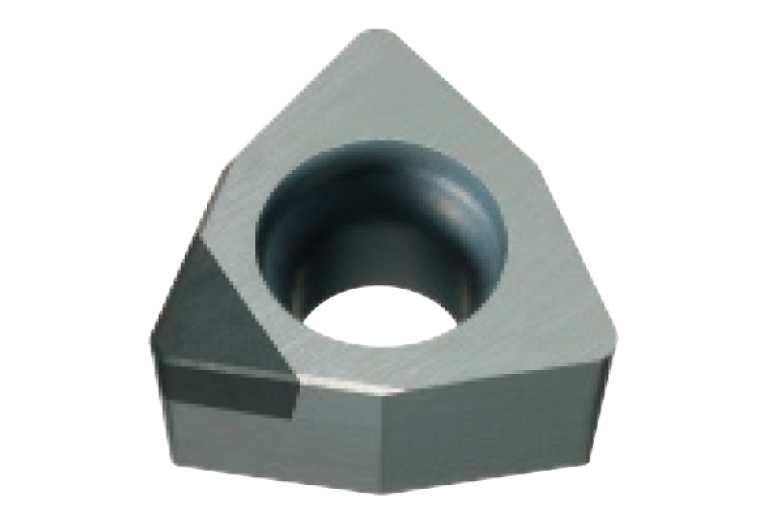

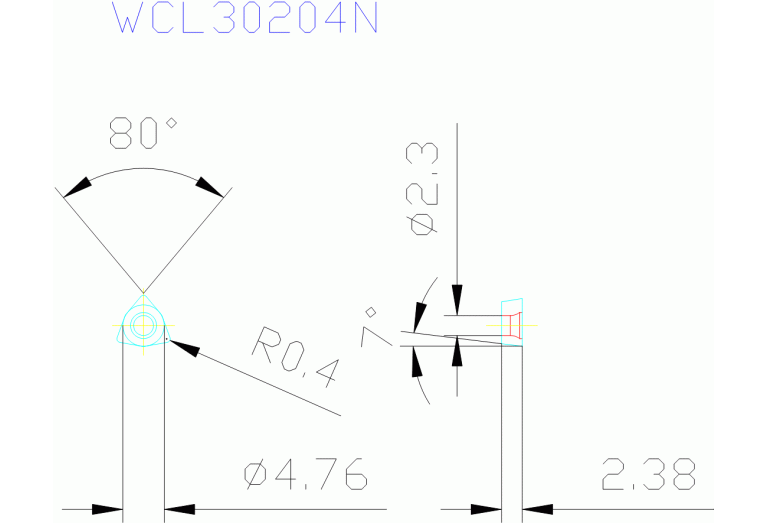

NP-WCMWL30204FA MB730

Артикул: 497213

В наличии

В корзину

Описание

Характеристики

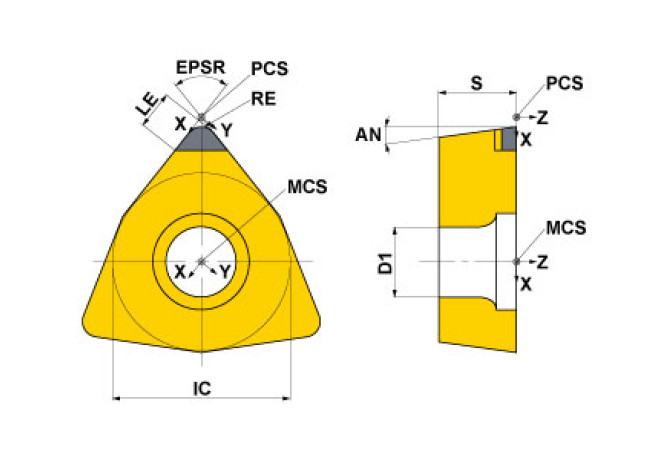

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

2.3 mm

Delivery state valid from

4/1/2024

EPSR Insert included angle

80 Degree

FamilyProducts

CBN Turning insert (Positive)

GRDMFG Grade manufacturers designation

MB730

IC Inscribed circle diameter

4.76 mm

ID Technical product number

497213

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

/ J441

ISISO ISO property

ISO

ISO$WCL302043NA$$04

ISYC Subclass

201-07 - Trigon insert

LE Cutting edge effective length

1.8 mm

LOC-03 ISO

ISO$WCL302043NA$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

Name Identifying order number

NP-WCMWL30204FA MB730

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

STDDESAnsi Standard designation ANSI

NP-WCMW1.51.51FA

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
