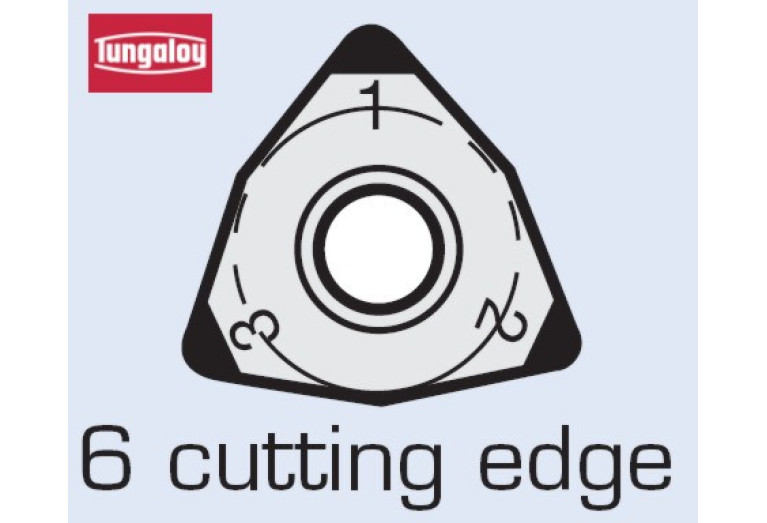

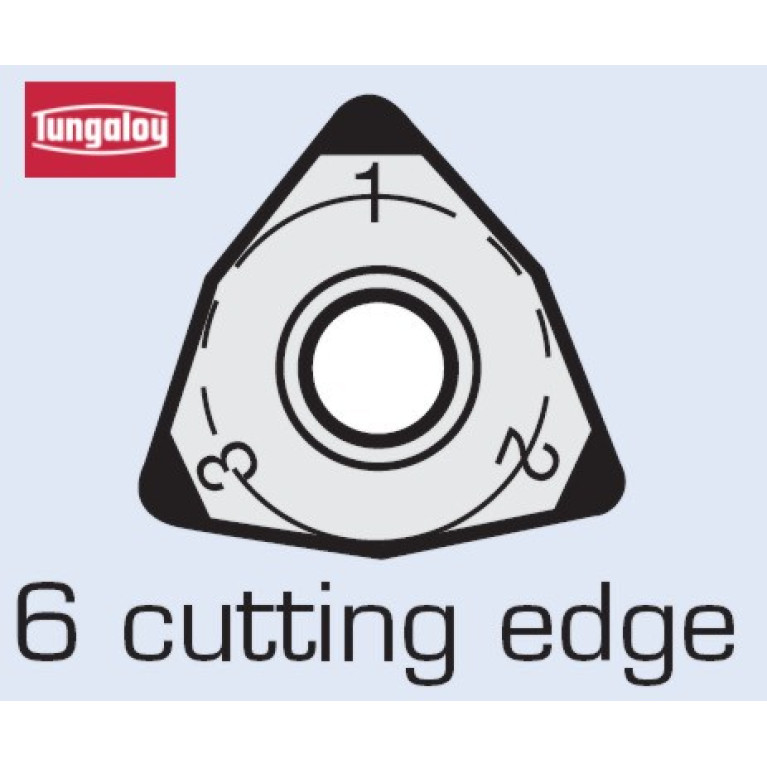

Главная Каталог продукции Toolunited 16 201-07 - Trigon insert 6QP-WNGA080408 BXC50

6QP-WNGA080408 BXC50

Артикул: 6818125

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

6QP

COATN Coating / Покрытие

PVD

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

8/24/2006

DIN

WN0804 2N

EPSR Insert included angle

80 Degree

FamilyProducts

indexable insert, multiple cutting edge, negative

GRDMFG Grade manufacturers designation

BXC50

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6818125

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804 2N

Name Identifying order number

6QP-WNGA080408 BXC50

NameAnsi Identifying order number inch alternative

6QP-WNGA 432 BXC50

RE Corner radius

0.8 mm

STDDES Standard designation

WNGA080408

STDDESAnsi Standard designation ANSI

WNGA432

TCINS Tolerance class insert

Working process

No working processes available
