Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TPUN220412 PC8110

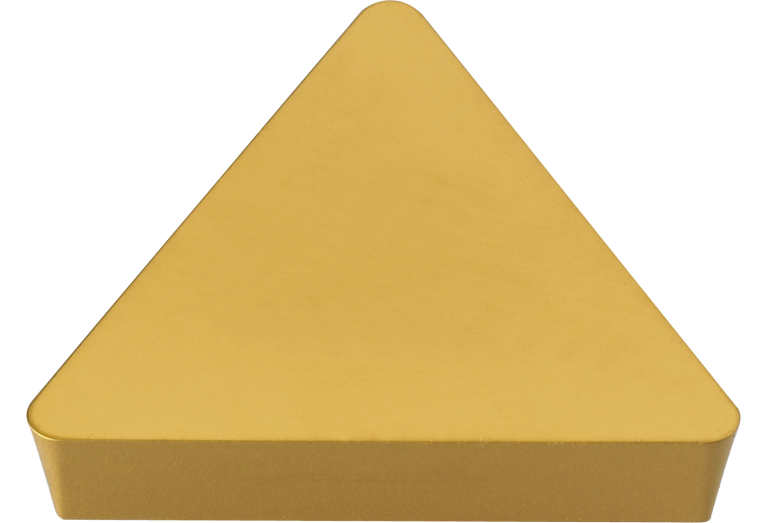

TPUN220412 PC8110

Артикул: 1-02-035570

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

TP2204 1N

EPSR Insert included angle

60 Degree

FamilyProducts

Turning Insert (Positive)

GRDMFG Grade manufacturers designation

PC8110

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-02-035570

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

22 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP2204 1N

Name Identifying order number

TPUN220412 PC8110

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

TPUN220412

STDDESAnsi Standard designation ANSI

TPUN433

TCINS Tolerance class insert

U - Not treated

Working process

No working processes available

WT Weight of item

0.0103 kg
