Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TPMR160308 US735

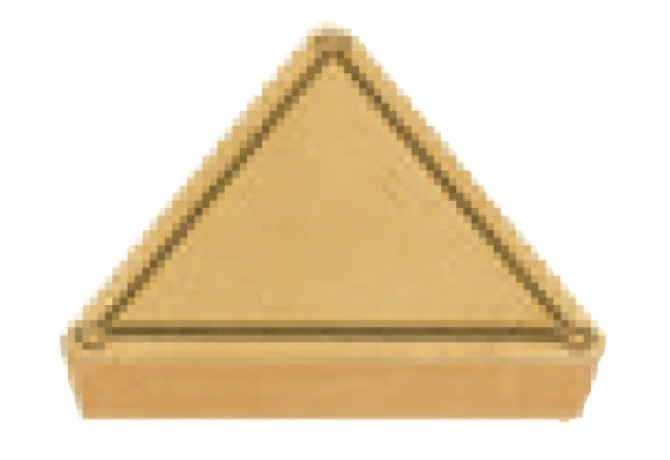

TPMR160308 US735

Артикул: TPMR160308 US735

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

BN Face land width

0.1 mm

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

Ti-Verb.

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

TP1603081N

EPSR Insert included angle

60 Degree

FamilyProducts

insert for turning TPMR

GAN Insert rake angle

18 Degree

GB Face land angle

18 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRD3RD Standard designation of the grade 3rd application

HC-P40

GRDMFG Grade manufacturers designation

US735

GRDPRIO Standard designation of the grade main application

HC-M30

IC Inscribed circle diameter

9.525 mm

ID Technical product number

TPMR160308 US735

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.49 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1603081N

Materials

P,M,S

Name Identifying order number

TPMR160308 US735

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TPMR160308

STDDESAnsi Standard designation ANSI

TPMR322

TCINS Tolerance class insert

Working process

DDI - Internal turning

WT Weight of item

0.007 kg
