Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TPMR110308 WK20CT

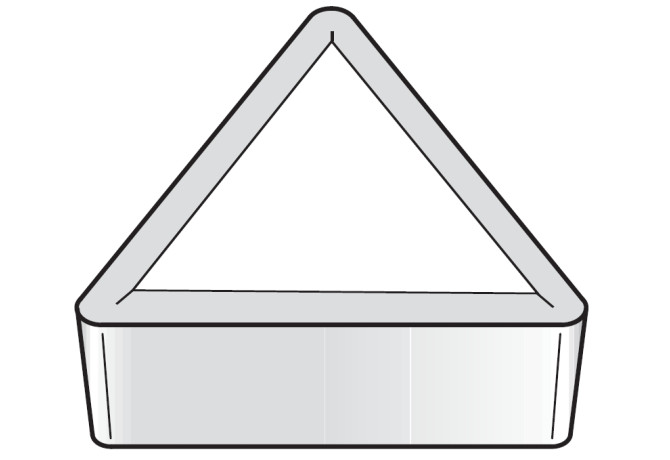

TPMR110308 WK20CT

Артикул: 4170954

В наличии

В корзину

Описание

Характеристики

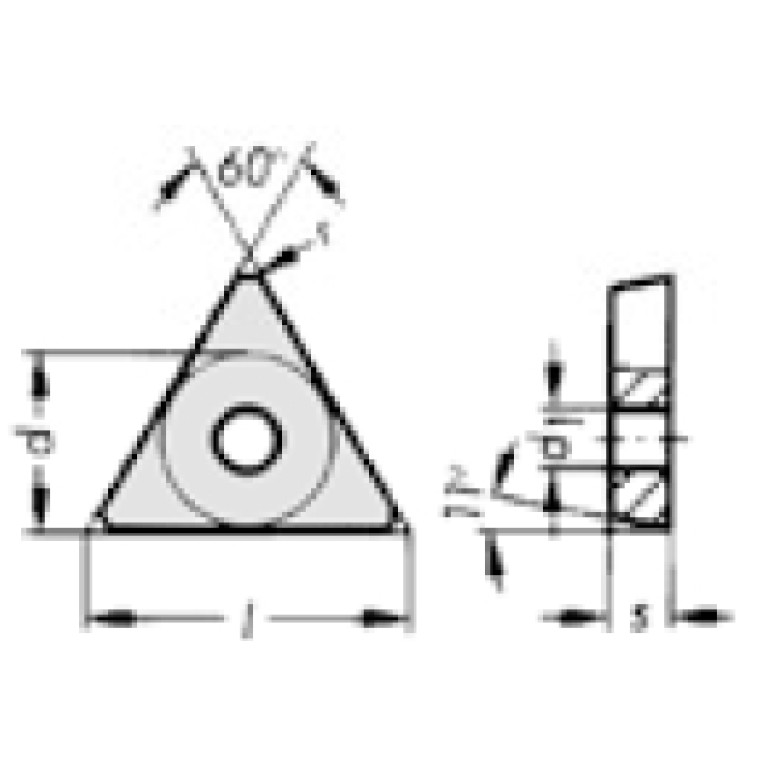

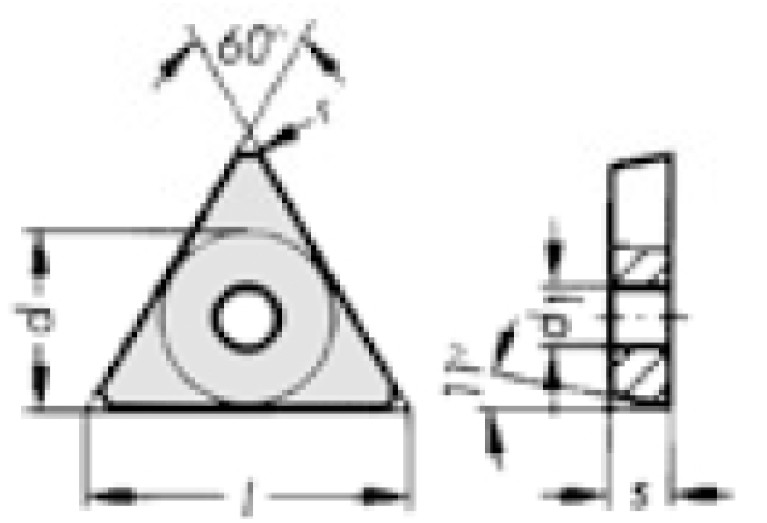

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

WI - Widia

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/5/2012

DIN

TP1103081N

EPSR Insert included angle

60 Degree

FamilyProducts

indexable insert for turning, positive, TPMR

GRDMFG Grade manufacturers designation

WK20CT

IC Inscribed circle diameter

6.35 mm

ID Technical product number

4170954

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1103081N

Materials

Name Identifying order number

TPMR110308 WK20CT

NameAnsi Identifying order number inch alternative

TPMR222 WK20CT

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TPMR110308

STDDESAnsi Standard designation ANSI

TPMR222

TCINS Tolerance class insert

Working process

No working processes available
