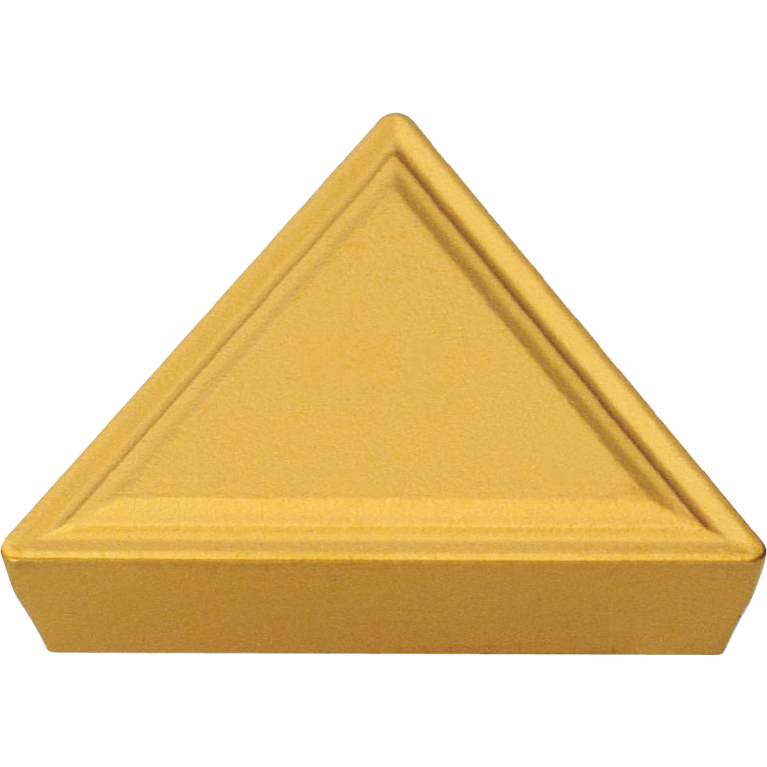

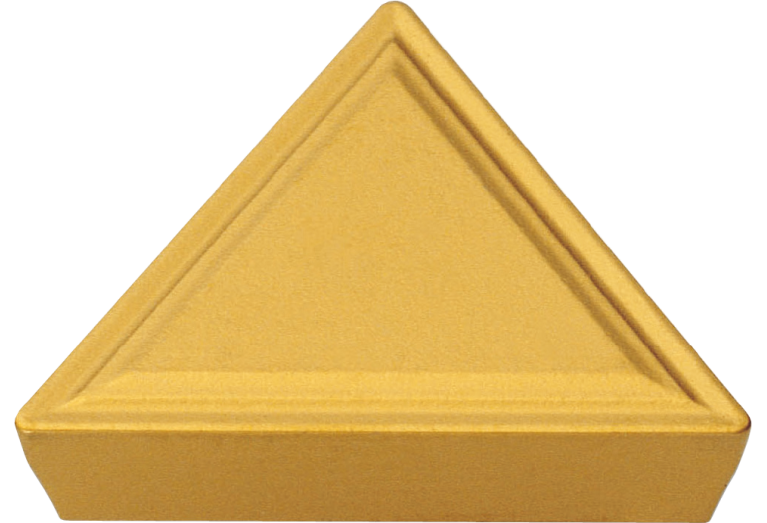

TPMR110304-F NC3220

Артикул: 1-02-045251

В наличии

В корзину

Описание

Характеристики

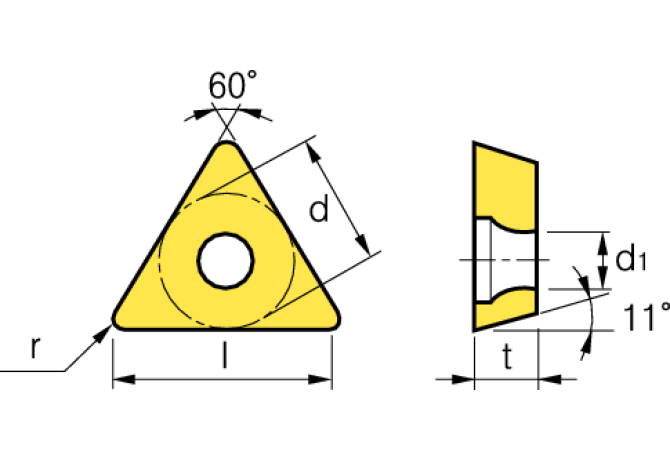

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

Coated

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

TP1103 1N

EPSR Insert included angle

60 Degree

FamilyProducts

Turning Insert (Positive)

GRDMFG Grade manufacturers designation

NC3220

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

6.35 mm

ID Technical product number

1-02-045251

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1103 1N

Name Identifying order number

TPMR110304-F NC3220

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TPMR110304

STDDESAnsi Standard designation ANSI

TPMR221

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.002 kg
