TPGX090204R UP20M

Артикул: TPGX090204R UP20M

В наличии

В корзину

Описание

Характеристики

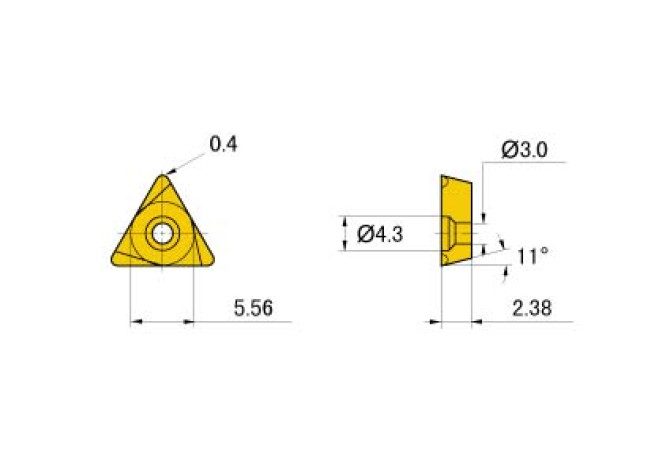

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

TiN-Verb.

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3 mm

Delivery state valid from

4/1/2022

DIN

TP0902044R

EPSR Insert included angle

60 Degree

FamilyProducts

INSERT, TURNING, COATED

GAN Insert rake angle

15 Degree

GRD2ND Standard designation of the grade 2nd application

HC-M20-M30

GRDMFG Grade manufacturers designation

UP20M

GRDPRIO Standard designation of the grade main application

HC-P20-P30

IC Inscribed circle diameter

5.56 mm

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

9.63 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP0902044R

Materials

Name Identifying order number

TPGX090204R UP20M

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TPGX090204R

STDDESAnsi Standard designation ANSI

TPGX1.81.51R

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
