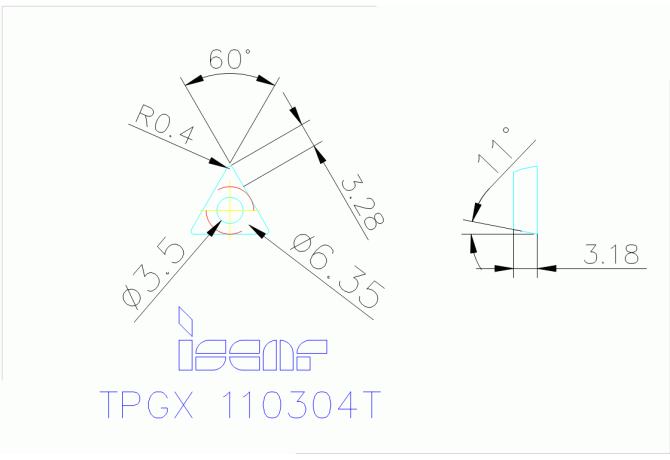

TPGX 110304T IB50

Артикул: 5700564

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.5 mm

Delivery state valid from

12/1/2014

DIN

TP1103043N

EPSR Insert included angle

60 Degree

FamilyProducts

TPGX 110304T IB50

GAN Insert rake angle

7 Degree

GRDMFG Grade manufacturers designation

IB50

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5700564

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1103043N

Name Identifying order number

TPGX 110304T IB50

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TPGX110304

STDDESAnsi Standard designation ANSI

TPGX221

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

DDI - Internal turning
