Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TPGX 090204-L IC908

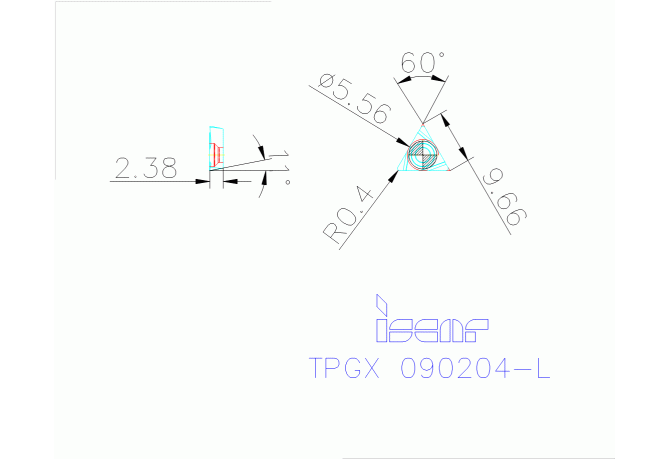

TPGX 090204-L IC908

Артикул: 5505576

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.5 mm

Delivery state valid from

2/1/2012

DIN

TP0902043L

EPSR Insert included angle

60 Degree

FamilyProducts

TPGX 090204-L IC908

GAN Insert rake angle

7 Degree

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRD3RD Standard designation of the grade 3rd application

HC-K40

GRDMFG Grade manufacturers designation

IC908

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

5.56 mm

ID Technical product number

5505576

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

9.63 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP0902043L

Materials

Name Identifying order number

TPGX 090204-L IC908

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TPGX090204

STDDESAnsi Standard designation ANSI

TPGX1.81.51

TCINS Tolerance class insert

Working process

DDI - Internal turning
