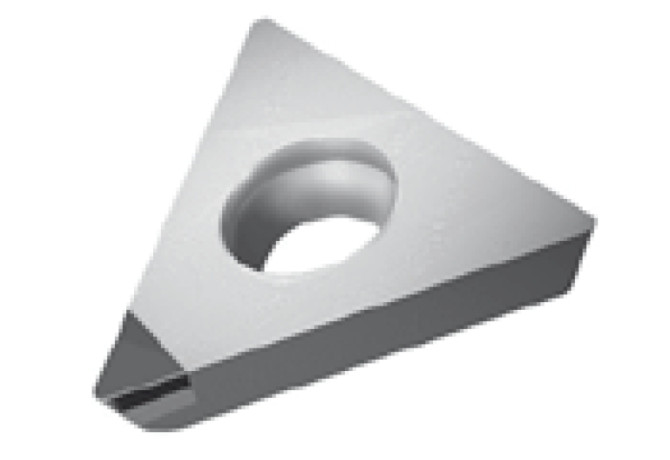

Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TPGW090208T13N-0AA-FP844

TPGW090208T13N-0AA-FP844

TPGW090208T13N-0AA-FP844 TPGW090208T13N-0AA-FP844 TPGW090208T13N-0AA-FP844

TPGW090208T13N-0AA-FP844

Mapal
Артикул: TPGW090208 T13 N-0AA-FP844
В наличии
В корзину
Описание
Характеристики

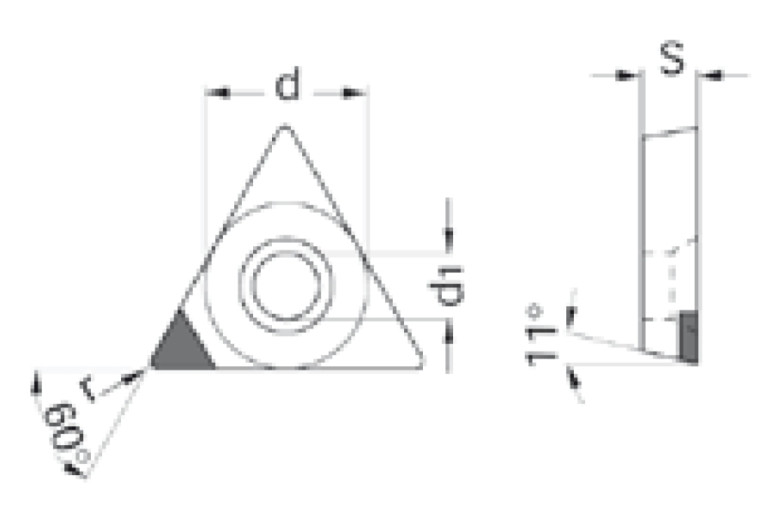

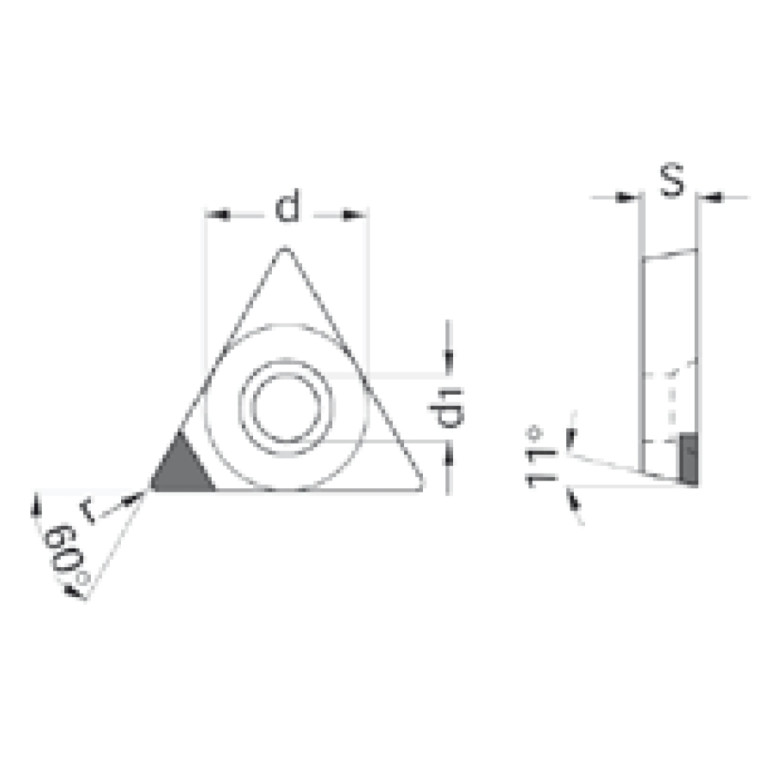

AN Clearance angle major
11 Degree
CB Chip breaker face count
0 - Without chip breaker
CBMD Chip breaker manufacturers designation
0AA
CECC Cutting edge condition code
T - Chamfered
COMPC Company code
MP - Mapal
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
2.5 mm
Delivery state valid from
7/10/2012
DIN
TP0902 3N
EPSR Insert included angle
60 Degree
FamilyProducts
indexable CBN insert TPGW type
GB Face land angle
13 Degree
GRDMFG Grade manufacturers designation
FP844
IC Inscribed circle diameter
5.56 mm
ID Technical product number
TPGW090208 T13 N-0AA-FP844
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-01 - Triangle insert
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TP0902 3N
Name Identifying order number
TPGW090208T13N-0AA-FP844
RE Corner radius
0.8 mm
S Insert thickness
2.38 mm
S1 Insert thickness total
2.38 mm
STDDES Standard designation
TPGW090208
STDDESAnsi Standard designation ANSI
TPGW1.81.52
TCE Tipped cutting edge code
A
TCINS Tolerance class insert
G
Working process
DDA - External turning,DDI - Internal turning
