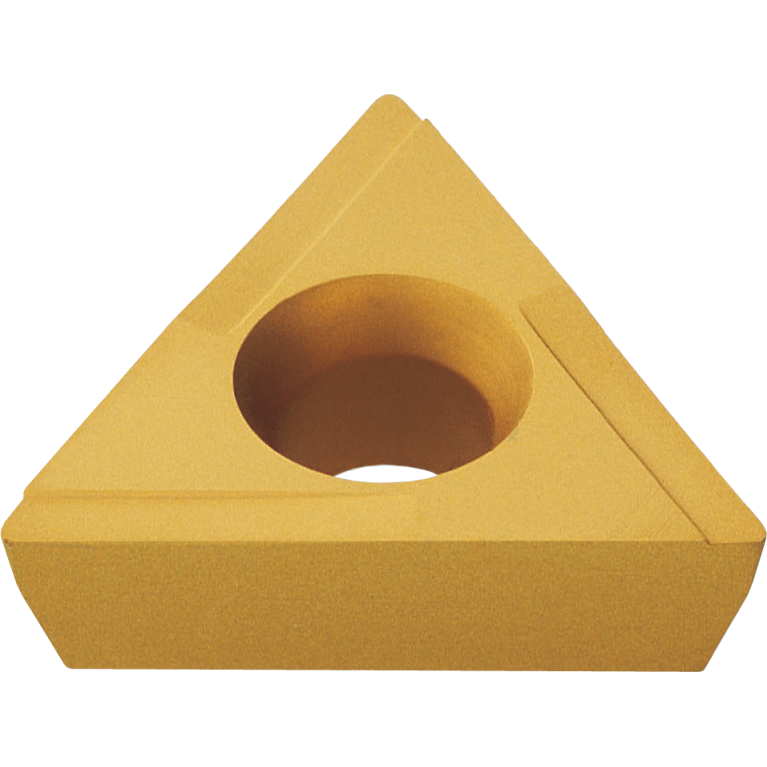

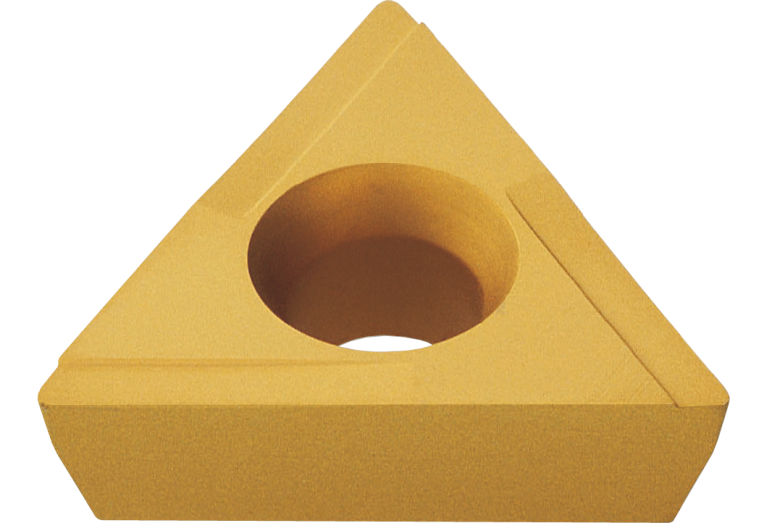

TPGT080204L PC9030

Артикул: 1-02-024757

В наличии

В корзину

Описание

Характеристики

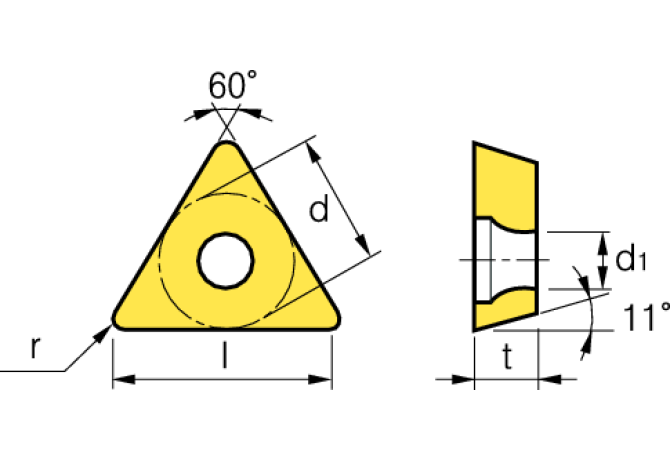

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.4 mm

Delivery state valid from

7/7/2014

DIN

TP0802 3L

EPSR Insert included angle

60 Degree

FamilyProducts

Turning Insert (Positive)

GRDMFG Grade manufacturers designation

PC9030

IC Inscribed circle diameter

4.76 mm

ID Technical product number

1-02-024757

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

8.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP0802 3L

Name Identifying order number

TPGT080204L PC9030

RE Corner radius

0.4 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

TPGT080204L

STDDESAnsi Standard designation ANSI

TPGT1.51.51L

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.7 kg
