Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TPGR160308R HTi10

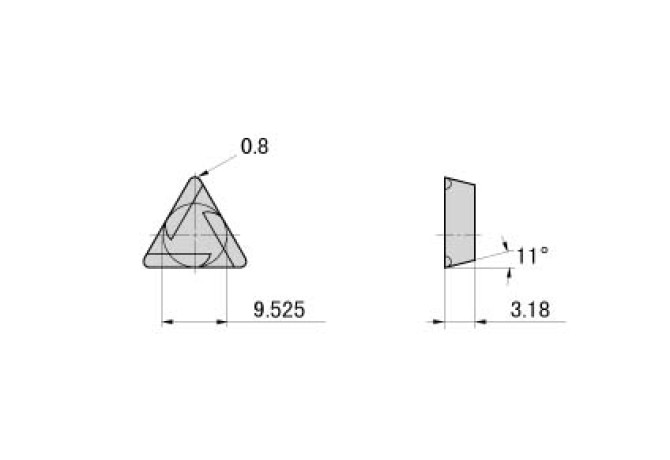

TPGR160308R HTi10

Артикул: TPGR160308R HTi10

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

TP1603081R

EPSR Insert included angle

60 Degree

FamilyProducts

INSERT, TURNING, UNCOATED

GAN Insert rake angle

15 Degree

GRDMFG Grade manufacturers designation

HTi10

GRDPRIO Standard designation of the grade main application

HW-K10

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

1 - Without bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.49 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1603081R

Materials

K,N,S,H

Name Identifying order number

TPGR160308R HTi10

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TPGR160308R

STDDESAnsi Standard designation ANSI

TPGR322R

TCINS Tolerance class insert

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,FEC - Square shoulder milling
