Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TPGN160308 KB420

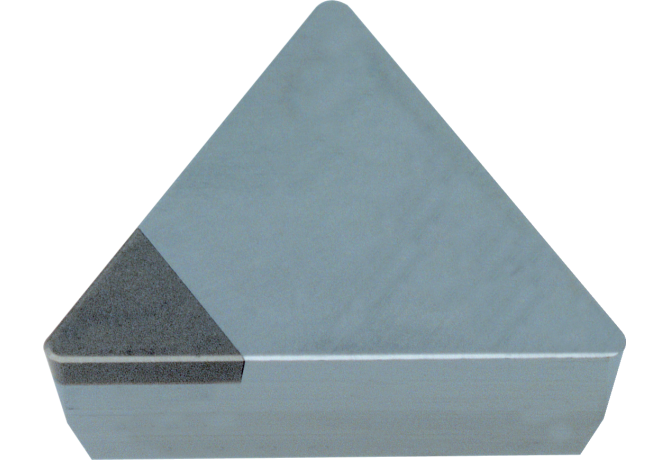

TPGN160308 KB420

Артикул: 6-01-004868

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

TP1603 1N

EPSR Insert included angle

60 Degree

FamilyProducts

CBN Regrindable (Positive)

GRDMFG Grade manufacturers designation

KB420

GRDPRIO Standard designation of the grade main application

CBN

IC Inscribed circle diameter

9.525 mm

ID Technical product number

6-01-004868

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LE Cutting edge effective length

3.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1603 1N

Name Identifying order number

TPGN160308 KB420

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TPGN160308

STDDESAnsi Standard designation ANSI

TPGN322

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.0047 kg
