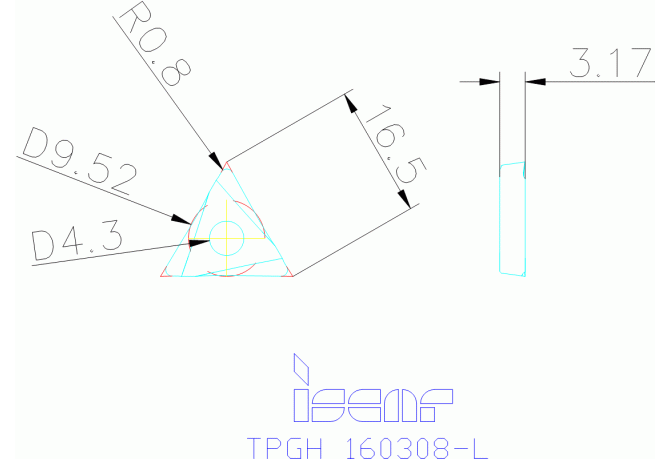

TPGH 160308-L IC570

Артикул: 5503791

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.3 mm

Delivery state valid from

2/1/2012

DIN

TP1603084N

EPSR Insert included angle

60 Degree

FamilyProducts

TPGH 160308-L IC570

GRDMFG Grade manufacturers designation

IC570

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5503791

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1603084N

Name Identifying order number

TPGH 160308-L IC570

RE Corner radius

0.8 mm

S Insert thickness

3.17 mm

S1 Insert thickness total

3.17 mm

STDDES Standard designation

TPGH160308

STDDESAnsi Standard designation ANSI

TPGH322

TCINS Tolerance class insert

Working process

No working processes available
