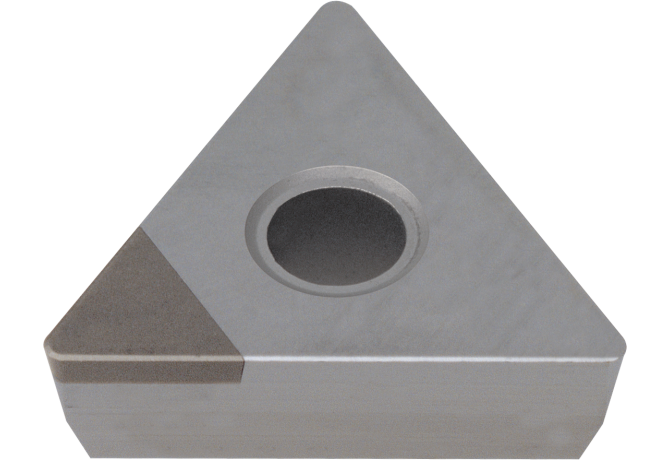

TPGB110308 KB370

Артикул: 6-01-028962

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.4 mm

Delivery state valid from

6/4/2014

DIN

TP1103 4N

EPSR Insert included angle

60 Degree

FamilyProducts

CBN Regrindable (Positive)

GRDMFG Grade manufacturers designation

KB370

GRDPRIO Standard designation of the grade main application

CBN

IC Inscribed circle diameter

6.35 mm

ID Technical product number

6-01-028962

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

LE Cutting edge effective length

3.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1103 4N

Name Identifying order number

TPGB110308 KB370

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TPGB110308

STDDESAnsi Standard designation ANSI

TPGB222

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
