Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TPGB 160304-60 IC70

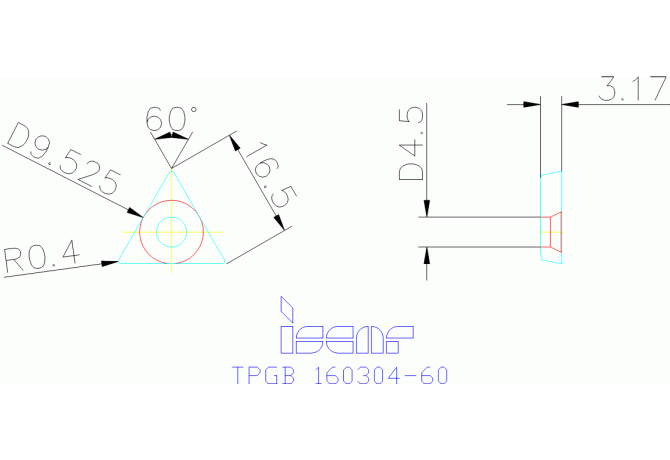

TPGB 160304-60 IC70

Артикул: 5502115

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.3 mm

Delivery state valid from

2/1/2012

DIN

TP1603044N

EPSR Insert included angle

60 Degree

FamilyProducts

TPGB 160304-60 IC70

GRDMFG Grade manufacturers designation

IC70

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5502115

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1603044N

Name Identifying order number

TPGB 160304-60 IC70

RE Corner radius

0.4 mm

S Insert thickness

3.17 mm

S1 Insert thickness total

3.17 mm

STDDES Standard designation

TPGB160304

STDDESAnsi Standard designation ANSI

TPGB321

TCINS Tolerance class insert

Working process

No working processes available
