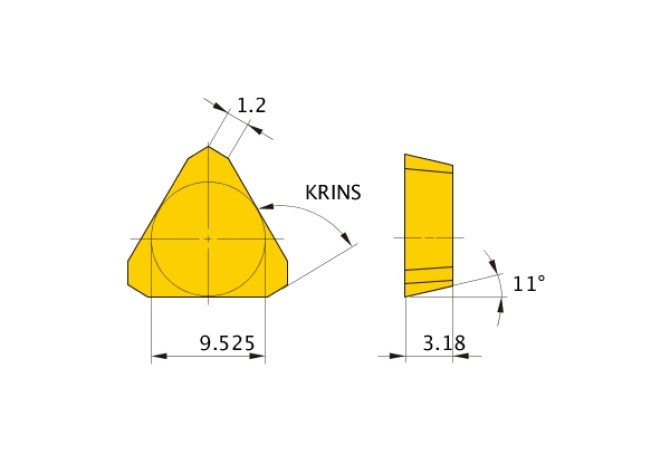

TPEN1603PPN HTi10

Артикул: TPEN1603PPN HTi10

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

11 Degree

BS Wiper edge length

1.2 mm

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/1/2022

DIN

TP1603PP1N

EPSR Insert included angle

60 Degree

FamilyProducts

rotating inserts TPEN

GAN Insert rake angle

0 Degree

GRDMFG Grade manufacturers designation

HTi10

GRDPRIO Standard designation of the grade main application

HW-K10

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

16.49 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1603PP1N

Materials

K,N,S,H

Name Identifying order number

TPEN1603PPN HTi10

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

TPEN1603PPN

TCINS Tolerance class insert

Working process

F - Milling,FFO - Die milling,FPL - Face milling
