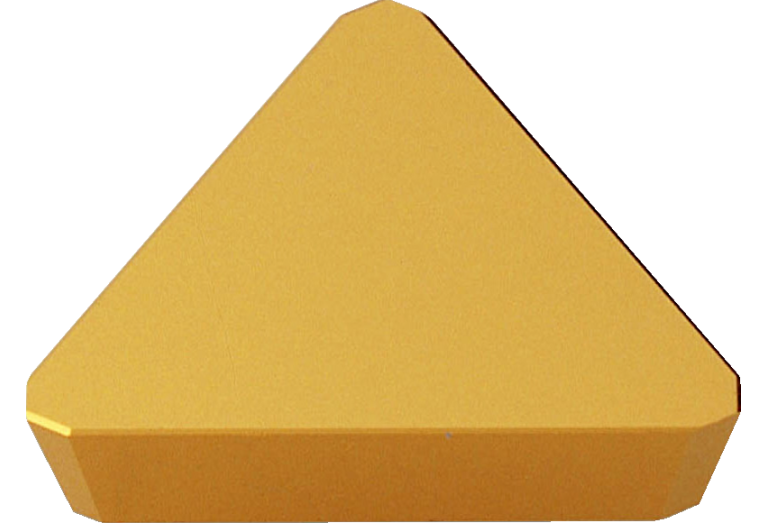

TPCN2204PDL ST30A

Артикул: 1-03-002849

В наличии

В корзину

Описание

Характеристики

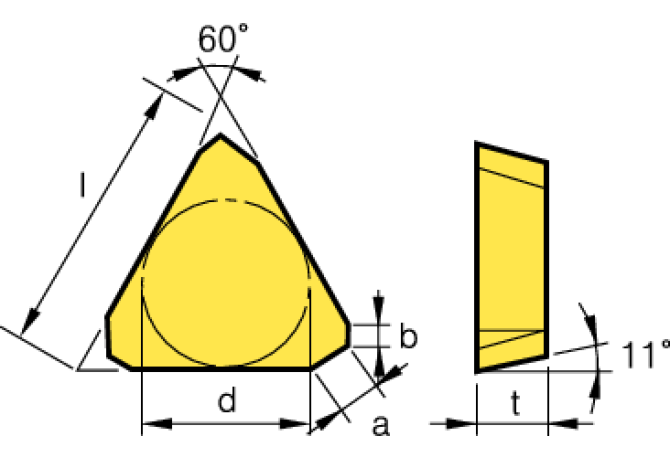

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

1.4 mm

CB Chip breaker face count

0 - Without chip breaker

CHW Corner chamfer width

0.7 mm

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

TP2204PD1L

EPSR Insert included angle

60 Degree

FamilyProducts

Milling inserts

GRDMFG Grade manufacturers designation

ST30A

GRDPRIO Standard designation of the grade main application

Carbide

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-03-002849

IFS Insert mounting style code

1 - Without bore

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

22 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP2204PD1L

Name Identifying order number

TPCN2204PDL ST30A

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

TPCN2204PDL

TCINS Tolerance class insert

Working process

F - Milling
