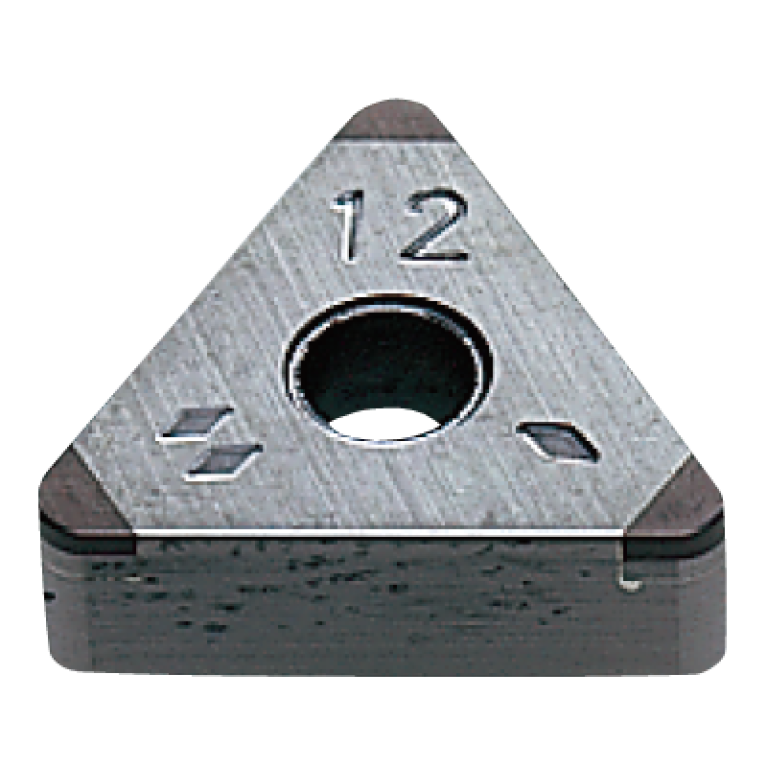

TNP-TNGA160408T3 MB8025
TNP-TNGA160408T3 MB8025
Артикул:
412005
В наличии
Характеристики
CB Chip breaker face count
0 - Without chip breaker
COMPC Company code
MI - Mitsubishi Materials
D1 Fixing hole diameter
3.81 mm
Delivery state valid from
4/1/2022
DIN
TN1604082N
EPSR Insert included angle
60 Degree
FamilyProducts
insert for turning, negative, TNP-TNGA-T3
GRDMFG Grade manufacturers designation
MB8025
IC Inscribed circle diameter
9.525 mm
ID Technical product number
412005
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-01 - Triangle insert
L Cutting edge length
16.49 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TN1604082N
Name Identifying order number
TNP-TNGA160408T3 MB8025
NameAnsi Identifying order number inch alternative
TNP-TNGA332-T3 MB8025
NOI Insert index count
3
RE Corner radius
0.8 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
TNGA160408T3
STDDESAnsi Standard designation ANSI
TNP-TNGA332-T3
TCINS Tolerance class insert
G
Working process
No working processes available
Главный задний угол (AN) / Clearance angle major (AN)
0 Degree
