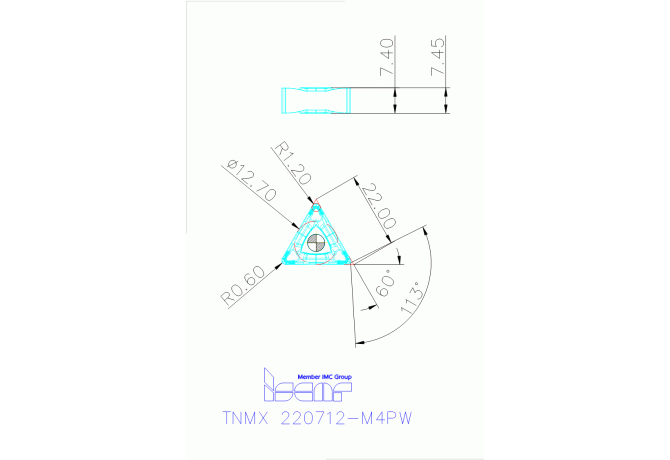

TNMX 220712-M4PW IC8150

Артикул: 5567454

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CBMD Chip breaker manufacturers designation

M4PW

COATN Coating / Покрытие

CVD

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/17/2015

DIN

TN2207122N

EPSR Insert included angle

60 Degree

FamilyProducts

Double-Sided Triangular Inserts

GRD2ND Standard designation of the grade 2nd application

HC-P01

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDMFG Grade manufacturers designation

IC8150

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5567454

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

22 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN2207122N

Materials

Name Identifying order number

TNMX 220712-M4PW IC8150

RE Corner radius

1.2 mm

S Insert thickness

7.94 mm

S1 Insert thickness total

7.94 mm

STDDES Standard designation

TNMX220712

STDDESAnsi Standard designation ANSI

TNMX453

TCINS Tolerance class insert

Working process

DDA - External turning
