Главная Каталог продукции Toolunited 16 201-01 - Triangle insert TNMN220408 CN2000

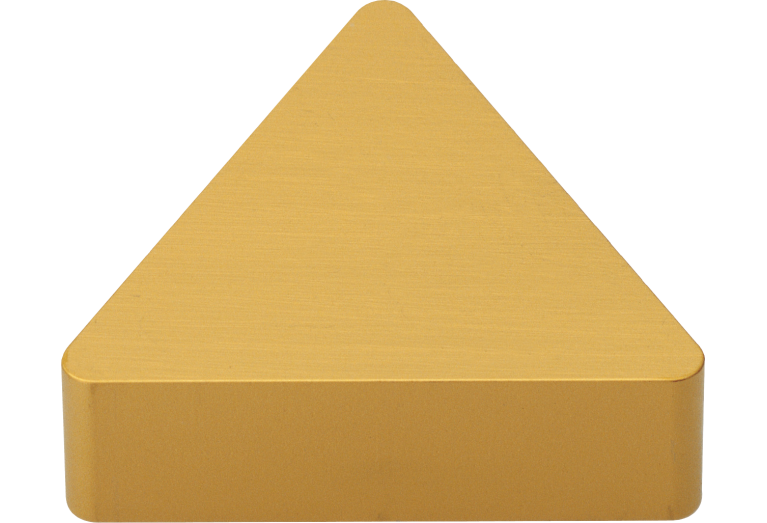

TNMN220408 CN2000

Артикул: 1-03-016953

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

ohne

COMPC Company code

KOR - Korloy

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

6/4/2014

DIN

TN2204 1N

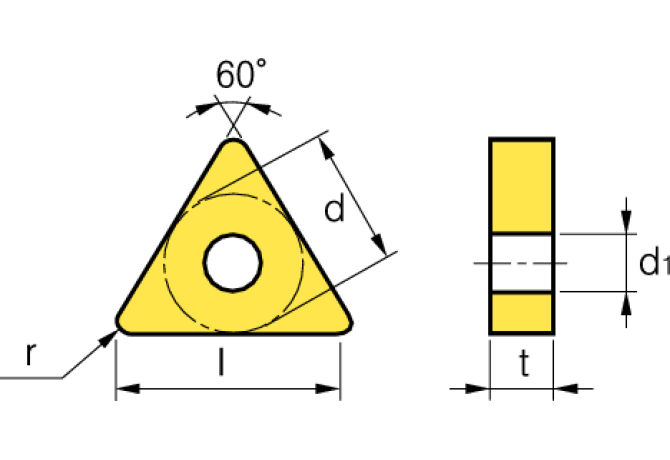

EPSR Insert included angle

60 Degree

FamilyProducts

Turning Insert (Negative)

GRDMFG Grade manufacturers designation

CN2000

GRDPRIO Standard designation of the grade main application

Cermet

IC Inscribed circle diameter

12.7 mm

ID Technical product number

1-03-016953

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

22 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN2204 1N

Name Identifying order number

TNMN220408 CN2000

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

TNMN220408

STDDESAnsi Standard designation ANSI

TNMN432

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.0068 kg
