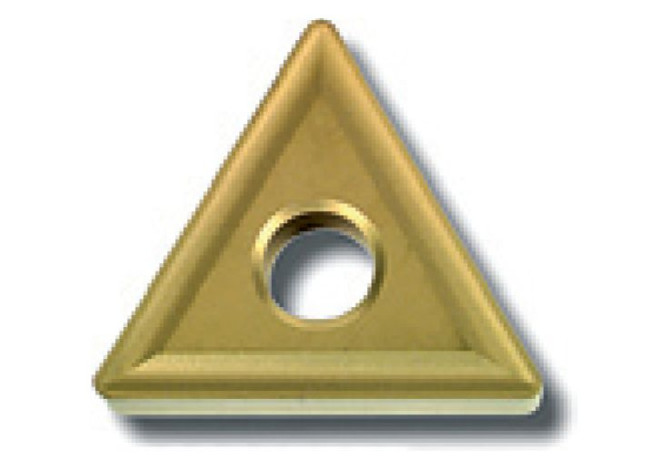

TNMG666 ENZ AC820P

Артикул: TNMG666 ENZ AC820P

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

SuperFF

COMPC Company code

SU - Sumitomo

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

7.94 mm

Delivery state valid from

8/26/2009

DIN

TN3309 2N

EPSR Insert included angle

60 Degree

FamilyProducts

insert, solid carbide, TNMG-N-NZ

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRDMFG Grade manufacturers designation

AC820P

GRDPRIO Standard designation of the grade main application

HC-P20

IC Inscribed circle diameter

19.05 mm

ID Technical product number

TNMG666 ENZ AC820P

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN3309 2N

Name Identifying order number

TNMG666 ENZ AC820P

RE Corner radius

2.4 mm

S Insert thickness

9.525 mm

S1 Insert thickness total

9.525 mm

STDDES Standard designation

TNMG330924

STDDESAnsi Standard designation ANSI

TNMG666

TCINS Tolerance class insert

Working process

No working processes available
